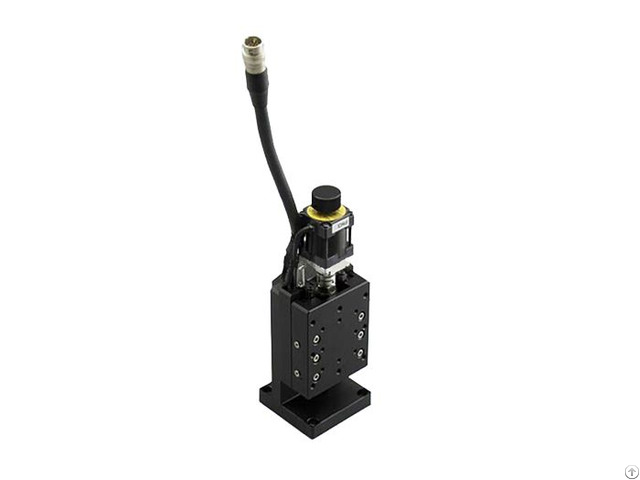

PP110-15-6030 Precise Electric Rotating Machine

Motorized Linear Stage

Motorized Stage

SPECIFICATION:

Model Number PP110-15-6030

Platform 60×70mm

Travel Range ±15mm

Stepper Motor 28 Stepping Motor with 5-Phases + Screws∅8×P1

Travel Guide Cross Roller Guide

Step Angel 1.8°

Phase Current 0.8A

Resolution Ratio Step/Half step 2μm/1μm

Max Velocity 20mm/sec

Repeating Positioning Accuracy 2μ

Absolute Positioning Accuracy 5μ

Parallelism 30μm

Driving Parallelism 10μm

Load Capacity Vertical: 5kgf(49N)

Weight 0.7kg

Surface Preparation Aluminum Alloy-Black-anodized

ADVANTAGE:

We have Processing equipment: CNC 10 sets, Lathe 8 sets, milling machine 11 sets.

We have a group of experienced high-level processing technicians.

Our products are sent to the Metrology Institute for random inspection every year regularly and issue inspection report.

Have the industry leading level of the designer, can strictly grasp the product design and processing precision.

We have experienced and skilled assembly master.

Our products from the design concept, the processing technology, the assembly technology omni-directional control.

Provide high quality products for users.

If our standard products do not meet your requirements, we can customize them according to your requirements.
