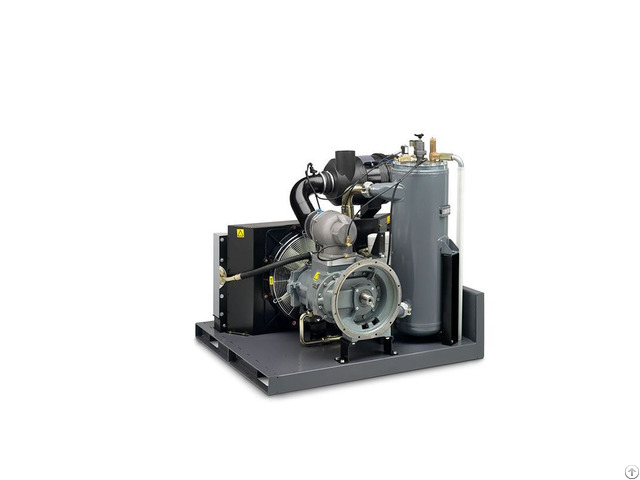

Power take-over (PTO) compressors

Product Description

TEWATT Power take-over compressors(hereinafter PTO compressors) focused on providing an economic, efficient way to produce compressed air while utilizing your existing power source.

The PTO compressors is the ideal air companion where the power source is an engine, electric motor, hydraulic motor, PTO-drive or any other source.

PTO compressors have become popular customized applications around the world.

Including manufacturers of packaged air compressors, drill rigs, trucks & all-terrain vehicles.

They are designed compactly with the smallest possible footprint, they are designed to offer maximum flexibility in use – they are designed to fit your needs exactly.

Main Features:

Integrated gearbox drive

Simple service and maintenance

Integrated air receiver tank and pressure vessel

6 complementary models

5-30 bar

Skid mounted (with or without canopy) and vessel options available

Flows up to 36 m3/min

Pressure and flow settings regulated to the gear ratio rpm and input power

Small footprint to enable easy integration with your existing equipment

Legendary air element with worldwide sales and service support

Technical data

Compressor TWT330-12 TWT520-14 TWT1000-25 TWT1000-30 TWT1270-25 TWT1250-30

Required input power Kw 78 147 302 315 388 415

Maximum free air delivery m3/min 9, 3 14, 7 28 28 36 35 cfm 330 520 1000 1000 1270 1250

Maximum effective working pressure bar 12 14 25 30 25 30 psi 175 203 362 435 362 435

Maximum allowable inlet temperature °C 50 50 50 50 50 50

Minimum allowable inlet temperature °C -25 -25 -25 -25 -25 -25

Compressed air temperature at minimum pressure valve (approx.

) °C 90 90 100 100 100 100

Design data

Number of compression stages 1 1 2 2 2 2

Minimum allowable male rotor speed rpm 2000 3000 2000 2000 2000 2000

Maximum allowable male rotor speed rpm 4930 5000 4000 4000 4000 4000

Oil capacity l 28 50 47 47 47 47

Net capacity of air receiver l 42 91 143 143 143 143

Vessel Internal Internal External External External External

Weight and dimensions

Length mm 990 1250 1590 1590 1590 1590

Width mm 994 1430 1700 1700 1700 1700

Height mm 1198 1422 1365 1365 1365 1365

Weight with canopy kg 500 840 1350 1380 1400 1430

Weight without canopy kg 420 735 1210 1240 1260 1230

Note: Specifiations are subject to change without further notice.
