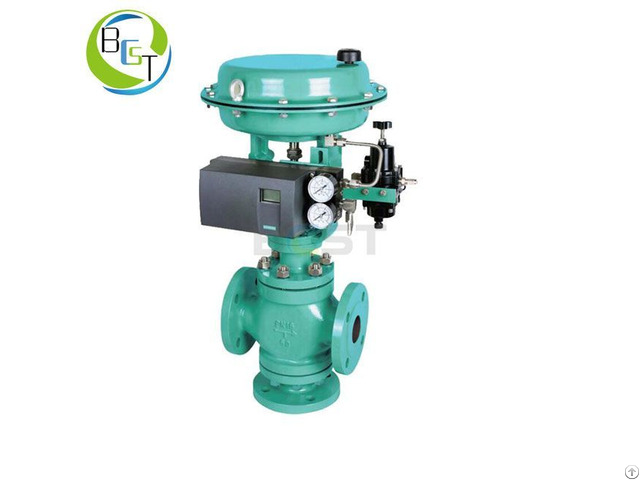

3 Way Pneumatic Globe Control Valve

3 Way Pneumatic Globe Control Valve is equipped with double-seats and cage-guided structure.

The valve is divided into 3 way mixing(converging) control valve and 3 way diverting(diverging) control valve.

Because the 3 way globe control valve achieves flow mixing temperature rise or temperature reduction, or fluid unequal flow diverting, then it can meet the needs of different working conditions.

BCST are the professional manufacturer for 3 Way Pneumatic Globe Control Valve

This three way globe control valve has the advantages of compact structure, light weight, sensitive action, small pressure drop loss, high pressure type, large valve capacity, accurate flow characteristics and convenient maintenance, and can be used in the automation control of various working conditions.

This 3 way globe control valve has various forms such as mixing(/diverting) normal type, and mixing(/diverting) high temperature type.

Technical Parameter for BCST 3 Way Pneumatic Globe Control Valve

Product Name: 3 Way Pneumatic Globe Control Valve

Feature: mixing(converg ing), diverting(diverging);

Nominal diameter: DN25~DN400;

Nominal pressure: PN16, PN25, PN40, PN64, etc;

Flow characteristics: linear, equal percentage;

Material: carbon steel, stainless steel, carbon iron, etc;

Shutoff class: class III, class Ⅳ;

Flange size: Comply with the standard of JB/79.1(2)-94, HG20592 97, GB, ANSI, JIS, DIN;

Operation temperature: Normal temperature: -40+230℃, Medium temperature: +230~+450℃, High temperature: +450~+560℃, Cryogenic temperature: -196~+40℃;

Series type: normal temperature, medium temperature, cryogenic temperature, bellows sealing type, jacket insulation type, regulating shut-off type.

Structure for BCST Pneumatic Globe Control Valve

PartsName Material

Valve Body WCB, 304, 316, WC6, WC9, Ti, Ni, Hastelloy, Monel, etc

Valve Plug & Valve Seat 304, 316, WC6, WC9, Ti, Ni, Hastelloy, Monel, etc

Valve Stem 0Cr18Ni9, 2Cr13

Push Rod 0Cr18Ni9, 2Cr13

Spring 60Si2Mn

Bellows 0Cr18Ni9

Diaphragm Clip reinforced nylon fabric nitrile rubber

Diaphragm Cover A3, 0Cr18Ni9

Gasket 0Cr18Ni9, graphite wound gasket(V6590), F4

Packing PTFE, Flexible graphite
