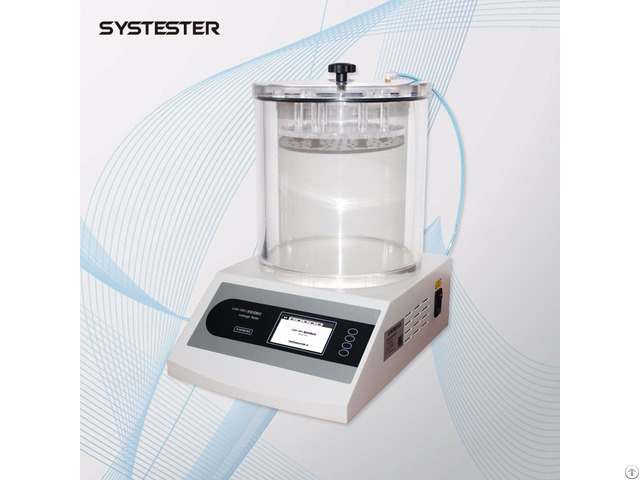

Packaging Leakage Tester Positive Pressure Method Testing Machine - China

Application

For determining the ability of packages to withstand internal pressurization.

For determining the minimum burst strength of a seal placed around the perimeter of a flexible package as it is internally pressurized and enclosed within restraining plates.

For the measurement of leaks in nonporous film, foil, or laminate flexible pouches and foil sealed trays, which may be empty or enclose solid product.



Features

1 - Our own patent technology.

2 - Touch screen operation.

3 - Real color TFT LCD display.

4 - Result, curve display.

5 - High speed sampling for test accuracy warranty.

6 - With and without restraining plates test is available.

7 - Burst, standard creep, creep-to-burst test.

8 - Over pressure protection.

9 - Low power consumption.

10 - RS232 communication port.

11 - Professional computer software support.

(optional)



Technical indexes

Testing range:

0-250kPa

0-800kPa

0-1600kPa

Gas source: 0.4MPa ~ 1.1MPa

Unit dimension: 345mm*410 mm*170mm

Package fixture size: 300 mm*350mm*330mm

Power supply: AC 220V 50Hz

Net weight: 25kg

Testing range: 0-250kPa

0-800kPa

0-1600kPa

Gas source: 0.4MPa ~ 1.1MPa

Unit dimension: 345mm*410 mm*170mm

Package fixture size: 300 mm*350mm*330mm

Power supply: AC 220V 50Hz

Net weight: 25kg



Standards

GB 18454, GB 19741, GB 10440, GB 17447, ASTM F2054, ASTM F1140, ISO 11607-1, ISO 11607-2, GB/T 17876, GB/T 10004, GB/T 10005, BB/T 0003, BB/T 0025, QB/T 1871, YBB 00162002, YBB 00252005

Configuration

Delivery: mainframe, package test fixture.

micro-printer

Optional: Professional computer software, restraining plates, open package test fixture, bottle cap test fixture, hose test fixture.
