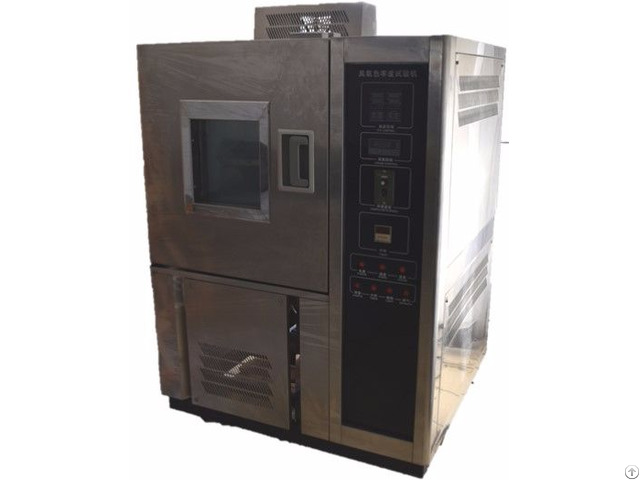

Ozone Aging Testing Chamber For Textile - China

Ozone aging color fastness tester is Equipped with a high efficiency ozone generator.

It is also equipped with HMOS sensor, ozone concentration of 5ppm, control accuracy of ± 20%, with a durable ccounters.

When the tank is full load for test, the ozone concentration can reach 5ppm in about five minutes;

2 - Stainless steel test chamber is equipped with a large UV glass observation window, and can acheive closed-loop control of the ozone concentration.

The rotating sample holder can hold up to 24 samples.

The automatic shut-off featured LED lights improve the observance of the test effect;

3 - In order to improve the safety performance of the device, it is equipped with door safety interlock, ozone decomposition catalyst and exhaust design with negative pressure monitoring;

4 - The user can conduct on-site calibration each year, and the sensor can also be returned to the factory for calibration.

Two calibration standards have NIST traceable calibration.

The equipment also has periodic reminders to alert users to replace ozone decomposition catalyst and ozone generator.

Application

It is suitable for a series of tests on color fastness and color fastness to airborne contaminants, such as knitted fabrics, woven fabrics, synthetic fiber fabrics, natural fiber fabrics, etc.

It can also be used for the ozone color fastness test of fabrics such as nylon carpet.

Standards

AATCC 109-2011 Colorfastness to Ozone in the Atmosphere under Low Humidities.

AATCC 129-2011 Colorfastness To Ozone In The Atmosphere Under High Humidities

ISO 105-G03-1993 Textiles; tests for color fastness; part G03: color fastness to ozone in the atmosphere

GB/T 11039.3-2005 Textiles; tests for color fastness; part 3: color fastness to ozone in the atmosphere

JIS L0890 Test methods for color fastness to ozone Features

· Multi-functional rotating sample rack supports hanging and placing samples in various ways to meet the test requirements of samples in different shapes and specifications.

Sample rack speed is adjustable.

· High output ozone generator with closed-loop ozone concentration control system and easy parameter setting panel provides a powerful control function and accurate test results.

· Transparent window with internal lighting system provides convenience to observe the test process.

The security door lock ensures test safety.

Structure

1 - The apparatus consists of an ozone generator, fans, baffles, sample holder and the sample compartment composition.

The use of high-voltage transformer ozone generator discharge through the grid, the generator is placed in front of the low pressure fan, an ozone separator system injects ozone into the test chamber.

Sample holder mounted on the wire can be applied to samples of various sizes.

2 - The device is equipped with high-efficiency ozone generator, controller, closed-loop control of ozone concentration and can accommodate 24 rotating sample holders.

The pre-set parameters can be displayed on the screen, thereby increasing the accuracy of the device operation and test results.

Technical Parameters

Items

Parameters

Temperature Range

10℃-50℃

Temp Accuracy

±1.0℃

Humidity range

50-90% RH

Humidity accuracy

±3%

Ozone concentration range

0-500pphm

Adjust method

flow regulation

Ozone generation

Static air emissions

Internal dimension

400mm x 400mm x500mm

Power supply

220V, 50Hz or115, 60Hz

External dimension

1000mm×650 mm×1450 mm

Weight

95KG
