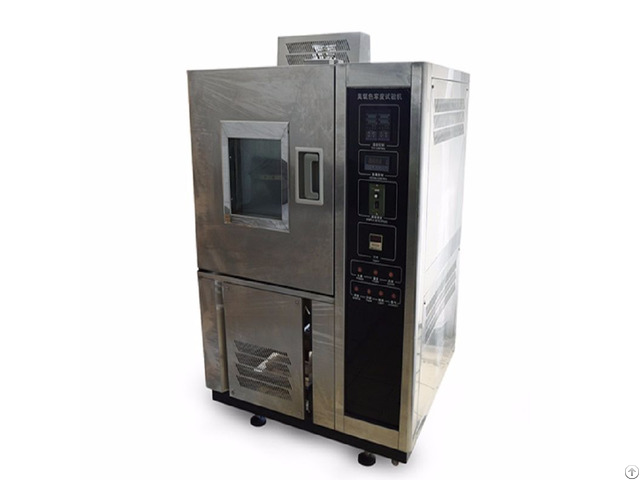

Ozone Aging Test Chamber Manufacturer - China

Ozone resistance test chambers test elastomers (rubber) in the condition of ozone exposure, to simulate and measure rubber aging by means of ozone within a few days.

Built with dynamic and static sample holders and others in accordance with test method of ASTM D1149, IEX6006811-403, ISO1431, ASTM D1171 - All models are upgrade to programmable controller and Ethernet access that provides simple operation and control.

The textile ozen aging color fastness tester is mainly used for testing color fastness properties of fabrics exposed to ozone environment; it is the special equipment for testing the fabric colorfastness to ozone.

Product Description 1 - Equipped with a high efficiency ozone generator.

It is also equipped with HMOS sensor, ozone concentration of 5ppm, control accuracy of ± 20%, with a durable ccounters.

When the tank is full load for test, the ozone concentration can reach 5ppm in about five minutes; 2 - Stainless steel test chamber is equipped with a large UV glass observation window, and can acheive closed-loop control of the ozone concentration.

The rotating sample holder can hold up to 24 samples.

The automatic shut-off featured LED lights improve the observance of the test effect; 3 - In order to improve the safety performance of the device, it is equipped with door safety interlock, ozone decomposition catalyst and exhaust design with negative pressure monitoring; 4 - The user can conduct on-site calibration each year, and the sensor can also be returned to the factory for calibration.

Two calibration standards have NIST traceable calibration.

The equipment also has periodic reminders to alert users to replace ozone decomposition catalyst and ozone generator.

Application It is suitable for a series of tests on color fastness and color fastness to airborne contaminants, such as knitted fabrics, woven fabrics, synthetic fiber fabrics, natural fiber fabrics, etc.

It can also be used for the ozone color fastness test of fabrics such as nylon carpet.

Standards AATCC 109-2011 Colorfastness to Ozone in the Atmosphere under Low Humidities.

AATCC 129-2011 Colorfastness To Ozone In The Atmosphere Under High Humidities ISO 105-G03-1993 Textiles; tests for color fastness; part G03: color fastness to ozone in the atmosphere GB/T 11039.3-2005 Textiles; tests for color fastness; part 3: color fastness to ozone in the atmosphere JIS L0890 Test methods for color fastness to ozone Features · Multi-functional rotating sample rack supports hanging and placing samples in various ways to meet the test requirements of samples in different shapes and specifications.

Sample rack speed is adjustable.

· High output ozone generator with closed-loop ozone concentration control system and easy parameter setting panel provides a powerful control function and accurate test results.

· Transparent window with internal lighting system provides convenience to observe the test process.

The security door lock ensures test safety.

Structure 1 - The apparatus consists of an ozone generator, fans, baffles, sample holder and the sample compartment composition.

The use of high-voltage transformer ozone generator discharge through the grid, the generator is placed in front of the low pressure fan, an ozone separator system injects ozone into the test chamber.

Sample holder mounted on the wire can be applied to samples of various sizes.

2 - The device is equipped with high-efficiency ozone generator, controller, closed-loop control of ozone concentration and can accommodate 24 rotating sample holders.

The pre-set parameters can be displayed on the screen, thereby increasing the accuracy of the device operation and test results.

Technical Parameters Items Parameters Temperature Range 10℃-50℃ Temp Accuracy ±1.0℃ Humidity range 50-90% RH Humidity accuracy ±3% Ozone concentration range 0-500pphm Adjust method flow regulation Ozone generation Static air emissions Internal dimension 400mm x 400mm x500mm Power supply 220V, 50Hz or115, 60Hz External dimension 1000mm×650 mm×1450 mm Weight 95KG
