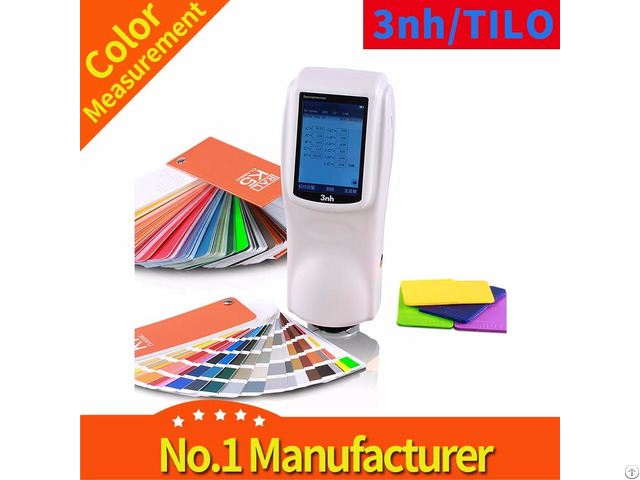

Ns800 Portable Accurately Color Management Spectrophotometer For Matching - China

NS800 spectrophotometer uses the principle of combination LED precision spectroscopy, separates the light according to a certain wavelength interval, and adopts groups of sensor array to perform sensitive analysis.

NS800 spectrophotometer with higher accuracy is very sensitive to any colors.

It not only can measure L*ab value and delta E value accurately, but also can display spectral reflectance curve which can realize color matching function and calculate the real parameters of various color formulas

Product Features 1 - Aesthetic design perfectly combined with ergonomics structure.

2 - 45/0 geometrical optics structure, comply with CIE, ISO, ASTM, DIN standard.

3 - 3.5 inch large capacitive touch screen.

4 - Two standard observer perspectives, multiple light sources modes, a variety of color systems.

5 - The repeatability ΔE*ab is within 0.04, the errors between each instrument ΔE* ab is less than 0.2.

6 - Large capacity storage, can save more than 10000 data.

7 - PC software with powerful extension functions.

8 - High hardware configuration with a number of innovative technologies.

9 - Oversized integrating sphere, more effective homogenization ray of lights and precise measurement.

10 - 15° oblique angle screen, more in line with the human eye observation.

Application Industry NS800 spectrophotometer is widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories.

It can measure reflectance spectrum and other color index precisely.

NS800 spectrophotometer not only can help to perform color matching and color management studies, but also can control product quality management accurately.

The instrument is equipped with high-end color management software which can connect PC to achieve more extension functions.

NS800 Spectrophotometer Specifications Model NS800 Illumination/observation system 45/0 method (45 ring-shaped illumination, vertical viewing), Comply with CIE No.

15, GB/T 3978 Integrating sphere Size Φ58mm Light Source combined LED sources Sensor Silicon photodiode array Wavelength range 400~700nm Wavelength interval 10nm Reflectance range 0~200% Measuring Aperture Φ8mm Color Space CIE LAB, XYZ, Yxy, LCh, CIE LUV Color difference Formula ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2: 1), ΔE*cmc(1: 1), ΔE*00 Other Chromaticity Data WI(ASTM E313, CIE/ISO, AATCC, Hunter), YI(ASTM D1925, ASTM 313), TI(ASTM E313, CIE/ISO), Metamerism Index (Mt), Color Stain, Color Fastness Observer 2°/10° Illuminant D65, A, C, D50, D55, D75, F2, F6, F7, F8, F10, F11, F12 Display Data Spectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation Measurement Time 1.5s Repeatability Spectral Reflectance: standard deviation within 0.1%(400~700nm: within 0.2%) Colorimetric Value Standard deviation within Delta E*ab 0.04 (Measurement conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.

) Inter Instrument Agreement Within Delta E*ab 0.2 (Average for 12 BCRA Series II color tiles) Dimension L*W*H=90*77*230mm Weight 600g Battery Li-ion battery.

5000 times within 8 hours Lamp Life 5 years, more than 1.6 million measurements Display Screen TFT 3.5inch, Capacitive Touch Screen Interface USB/RS-232 Data Memory 1000 Standards, 15000 Samples Operating Temperature 0~40ºC(32~104°F) Storage temperature -20~50ºC(-4~122°F) Standard Accessory Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM (containing management software), Data Line, White and Black Calibration Cavity, Protective Cover and Wrist Strap Optional Accessory Micro Printer, Universal Test Compon Others Provide complete spectrum reflectance curve, Input L, a, b value manually Notes The specifications are subject to change without notice Contact details
