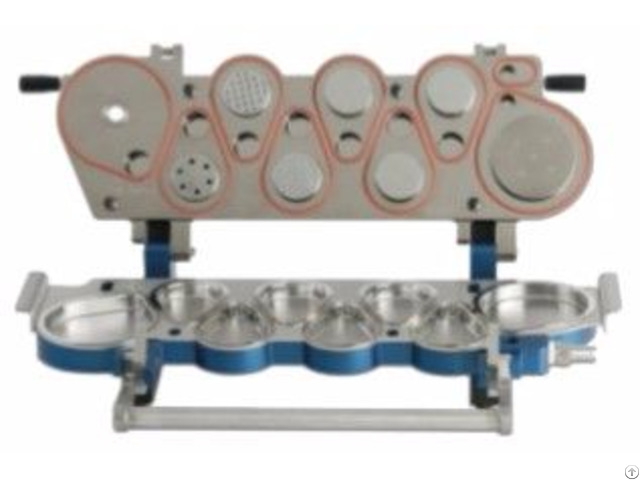

Next Generation Pharmaceutical Impactor - China

The next generation impactor TM, or NGI TM, is a high performance cascade impactor for classifying aerosol particle into size fractions for testing meter-dose and dry-power inhaler and other inhaled drug delivery devices such as nebulizers and nasal sprays.

MSP developed the NGI in conjunction with a consortium of 15 pharmaceutical companies, resulting in superior aerodynamic performance, low inter-stage losses, and user-friendly features, The NGI is recognized internationally both in the USP and the EP.

It features removable collection cups, O-ring-free connections, and a micro-orifice collector that can be used in place of a final filter for most formulation.

These features make the NGI an easy-to-use, efficient workstation, enabling 10 to 20 inhaler determinations per day with one impactor, resulting in less capital equipment and a cleaner, more efficient laboratory.

Designed specifically for the pharmaceutical industry for testing metered-dose inhalers (MDI), dry-power inhalers (DPI), nebulizer and nasal sprays.

Provides high-accuracy data and unappalled productivity.

Features

1 - Seven impaction stages plus a final micro-orifice collector that can be used in place of a final filter for most formulations.

2 - Known stage cut size from 15L/min to 100L/min with no change of parts needed for entre range.

3 - Also calibrated at 15L/min specifically for nebulizers.

4 - Seven stages with at least five with D50 values between 0.54 and 6.12 μm at all design flow rates.

5 - Removable set of collection cups, hinged removable lid, and O-ring free inlet connections.

6 - Electrically conductive and corrosion resistant.

7 - 316 stainless steel USP induction port.

8 - One pre-separator for entire range of 30L/min to 100L/min W/O changing parts.

Technical Parameters

Items Parameters

Flow rate 15-100L/min

Stage cut point(1-7 stages) Look up the USP 601 Section, Table 6 for more information

D50 @30L/min 11.4, 6.4, 4.0, 2.3, 1.4, 0.80, 0.54 µm

D50 @ 60 L/min 8.1, 4.4, 2.8, 1.7, 0.94, 0.55, 0.34 µm

D50 @100 L/min 6.1, 3.4, 2.2, 1.3, 0.72, 0.40, 0.24 µm

Weight 9kg

Dimension 600 x 330 x 130 mm (L x W x H)
