Ms303 Conveyorized Pallet Stretch Wrapper Machine - China

Hennopack provide customers with a full range of stretch film packaging machines, mainly including Semi-auto stretch wrapper, weighing stretch wrap, M typr pallet wrap, turntable stretch wrapper, rotary arm stretch wrapper, reel wrapper, pallet dispenser, top sheet dispenser, robot worker, orbital wrapper and so on.

Also to comply with the request of different clients’, we could design and make different pallet stretch wrap.

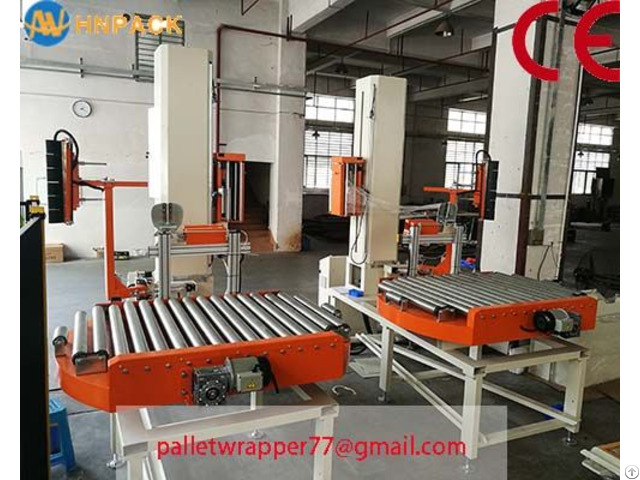

Hennopack MS303H Auto Turntable Stretch Wrapper is conveyorized machines for automated unmanned packing lines.

Controlled by the same control system.

pallets can be automatically wrapped to be protected against dust moisture, and achieve perfect exterior l.

ooking

Specifications:

Turntable diameter: 1800mm, with motorised rollers

Turntable speed: 3 - 15rpm, soft start & stop

Turntable height: 456mm

Max load weight: 2500kgs

Wrap height: 2100mm

Wrapping settings: wrapping cycles /top wraps /bottom wraps /overwrap

Carriage speed: 5 meters/min max Conveyor speed: 3 – 12 mts/min

Clamper type: scissor type clamper

Cutter type: instant heater

Turntable motor: 0.75kw

Pre-stretch motor: 0.2kw Carriage lifter motor: 0.37kw

Conveyor motor: 0.75kw

Power supply: 3PH 380VAC, 50/60Hz

Air pressure: 0.4-0.7Mpa

Film type: stretch film thickness 17-35microns, width 450-500mm, paper core 76mm, max weight 18kgs

Options:

1 - Turntable diameter 2000mm and/or wrap height 2400mm, 2600mm, 2900mm.

2 - Touch sreen user interface and/or standalone electric box.

3 - Safety fencing for better protection of operators.

4 - Infeed/outfeed conveyors.

5 - MT107 Top sheet dispener system to wrap the top of pallets.

Company Contact:

• Posted By: Shenzhen Henno Packaging Technology Co., Ltd

• Phone: +8618924580301

• Address: Hongjian Market South，Houjie Town,D, dongguan , guangdong , China

• Email:

• Website: https://www.hennopack.com

• Business Description: Hennopack is the professional packing equipment manufacturer and supplier in China.

  Located in the south part of China, we have we have the very convenient condition to start our packer system business.

  Based on the 4 big factories located in SHENZHEN and DONGGUAN, we can make 3 different big kinds of Packing systems: different type of case packer, Robot pick and drop system, Case erector, Carton sealer, box former pallet stretch wrapper and shrink wrapper.

  The hennopack team has many skilled technicians to help you solve all kinds of packing system problems.

  we provide PLC programming, HIMI programing, customized mechanic design etc.

  Also, have our own spare parts group.

  They are ready to help you get all kinds of packing machine spare parts in China.

  And we insure that all the parts we use and sell are 100% original.
