Mqt100 Handheld Reinforced Pneumatic Jumbolter - China

Application of MQT100 Handheld Reinforced Pneumatic Jumbolter

1 - MQT100 Handheld Reinforced Pneumatic Jumbolter is widely used in roadway where the hardness of rock is greater than or equal to f10, especially for rock bolting in roadway.

2 - MQT100 Handheld Reinforced Pneumatic Jumboltercan not only drill roof rock bolt hole and anchor hole, but also stir and install resin cartridge type rock bolt and anchor without other equipments to install and screw down the rock bolt and nut once which achieve initial anchor pre-stressing force.

Parameter of MQT100 Handheld Reinforced Pneumatic Jumbolter Model & Parameter MQT-100/3.1 MQT-110/2.8 MQT-120/3.0 MQT-130/3.2

Suitable Pressure Range (Mpa) 0.4 -- 0.63 0.4 -- 0.63 0.4 -- 0.63 0.4 -- 0.63

Rated Pressure (Mpa) 0.5 0.5 0.5 0.5

Rated Torque (N.

M) ≥100 ≥110 ≥120 ≥130

Rated Rotate Speed (R/Min) 280 240 240 240

Leg Propulsion(Kn) Iii 9.8 9.8 9.8 9.8 Ii 6.7 6.7 6.7 6.7 I 5.2 5.2 5.2 5.2

Idle Pushing Speed(Mm/S) 400 400 400 400

Max.

Output Power (Kw) 3.1 2.8 3 3.2

Idle Rotate Speed (R/Min) 900 700 700 700

Stall Torque (N.

M) ≥180 ≥230 ≥240 ≥240

Max.

Loading Torque (N.

M) 170 220 230 230

Air Consumption (M3/Min) 3.8 3.6 3.8 4

Noise Level (Db(A)) <90 <90 <90 <90

Leg Type I II III I II III I II III I II III

Weight (Kg) 45 47 49 48 50 50 48 50 52 48 50 52

Max Height (Mm) 2566 3046 3614 2552 3032 3600 2552 3032 3600 2552 3032 3600

Min Height (Mm) 1189 1309 1451 1175 1295 1437 1175 1295 1437 1175 1295 1437

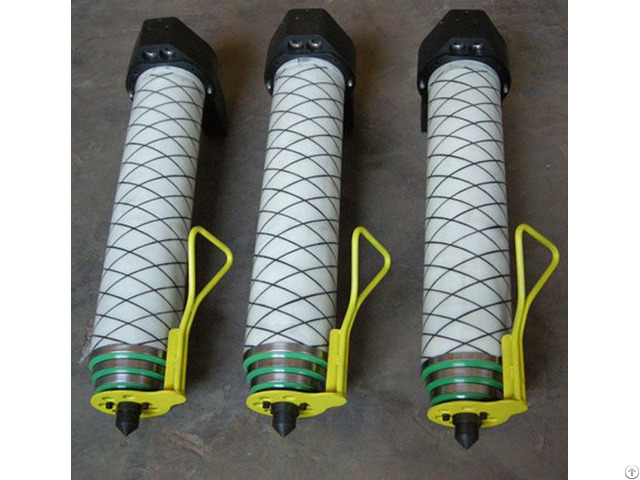

Pictures of MQT100 Handheld Reinforced Pneumatic Jumbolter
