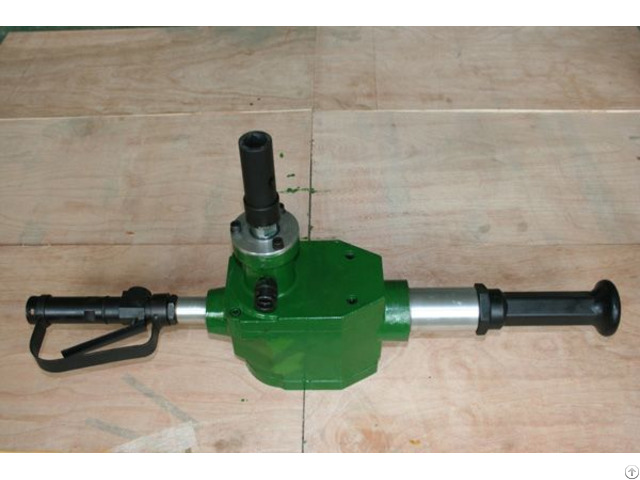

Mqt Anchor Drilling Machine Pneumatic Roof Bolter - China
price: 135.00 Dollar US$
Introduction of MQT Anchor Drilling Machine Pneumatic Roof Bolter MQT Anchor Drilling Machine Pneumatic Roof Bolter has the advantages of higher output power, high rotate speed and drilling power; convenient operation and maintenance to the air & water control valve; and special silencer bringing comfortable working condition, etc.
MQT-70/1.8, MQT-85/2.2, MQT-90/2.3A, MQT-100/3.1, MQT-110/2.8, MQT-120/3.0 and MQT-130/3.2 - and each model can be equipped with drilling rod with two connection types, B19 and B22 - In addition, we also provide various drill bits & rod fitting for different rock hardness for your selection.
Parameter of MQT Anchor Drilling Machine Pneumatic Roof Bolter
No.
Basic parameters Unit MQT-100/3.1 MQT-110/2.8 MQT-130/3.2 MYT-140/320 MYT-150/320
1 Air pressure Mpa 0.40-0.63 0.40-0.63 0.40-0.63 -- --
2 Rated torque N.
m 0.5 0.5 0.5 14/8 14/8
3 Water flushing pressure mpa 0.6-1.2 0.6-1.2 0.6-1.2 0.6-1.2 0.6-1.2
4 Rated torque N.
m 100 110 130 140 150
5 Rated rotation speed R/min 280 240 240 320 320
6 No-load trust speed mm/s 400 400 400 -- --
7 Max.
Output power Kw 3.1 2.8 3.2 -- --
8 No-load rotation speed r/min 900 700 720 -- --
9 Stalling torque N.
m 180 230 210 -- --
10 Max.
Load torque N.
m 170 220 190 -- --
11 Air consumption M3/min <=3.8 <=3.6 <=4.5 -- --
12 Noise Db(A) <=90 <=90 <=95 <92 <92
13 Leg type I II III I II III I II III I II III I II III
14 Leg propulsion kN 5.2 6.7 9.8 5.2 6.7 9.8 5.2 6.7 9.8 5.2 6.7 9.8 5.2 6.7 9.8
15 Overall Max.
height mm 2566 3046 3614 2552 3032 3600 2540 3015 3600 2430 3360 4080 2460 3360 4080
16 Overall Mini.
height mm 1189 1309 1451 1175 1295 1437 1365 1725 2145 1200 1510 1750 1200 1510 1750
17 Weight kg 45 47 49 48 50 52 50 52 55 51 58 64 51 58 64
18 Rock drill rod mm B19 B22 B19 B22
19 Rock drill bit mm 27 28 30 32 38 42 44 27 28 30 32 38 42 44
Company Contact:
- Posted By: Shandong China Coal Group
- Phone: 865372350961
- Address: No.11 Kaiyuan Road, Jining , China
- Email:
- Website: https://www.chinacoalintl.com
Published date: May 30, 2019
- Business Description: Shandong China Coal Industrial&Mining Supplies Group Co., Ltd
(hereinafter referred to as china coal) is a group company .
which is a
collection of e commerce, machinery manufacturing, software, research
and development, modern logistics of large diversified industrial group.
