Mqt 110 Hand Pneumatic Roof Bolter - China
price: 545.00 Dollar US$
Introduction of MQT 110 Portable Hand Pneumatic Roof Bolter
MQT 110 Portable Hand Pneumatic Roof Bolter is widely used in underground coal mining, applicable to support with cable or bolt in coal laneway, half-coal laneway and rock laneway with rock hardness no more than 100MPa.
Advantages of MQT 110 Portable Hand Pneumatic Roof Bolter
MQT 110 Portable Hand Pneumatic Roof Bolter combined with drilling, mixing and assembling.
Dual exhaust model and new seals structure ensure the fast and smooth leg expansion and retraction.
The unique silencer reduces noise, drilling shaft and leg center are perfect alignment, drilling stably.
Technical Parameters of MQT 110 Portable Hand Pneumatic Roof Bolter
Parameter Unit MQT110 MQT120 MQT130
Stress range Mpa 0.4-0.63 0.4-0.63 0.4-0.63
Rated pressure Mpa 0.5 0.5 0.5
Rated torque n.
m 110 120 130
Rated speed r/min ≥230 ≥200 ≥180
Maximum output power KW ≥2.4 ≥2.6 ≥3.0
Maximum load torque n.
m ≥180 ≥220 ≥260
starting torque n.
m ≥170 ≥180 ≥230
Load gas consumption m³/min ≤3.8 ≤4.2 ≤4.4
Maximum speed of revolution r/min 620 500 460
Weight Kg 48 52 54

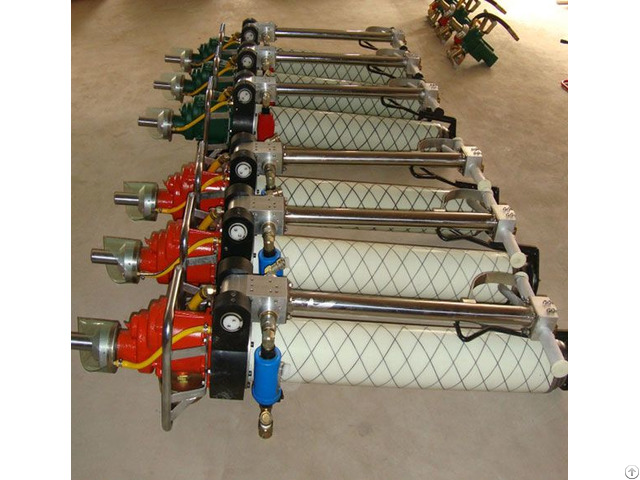

Pictures of MQT 110 Portable Hand Pneumatic Roof Bolter
Company Contact:
- Posted By: Shandong China Coal Group
- Phone: 865372350961
- Address: No.11 Kaiyuan Road, Jining , China
- Email:
- Website: https://www.chinacoalintl.com
Published date: May 30, 2019
- Business Description: Shandong China Coal Industrial&Mining Supplies Group Co., Ltd
(hereinafter referred to as china coal) is a group company .
which is a
collection of e commerce, machinery manufacturing, software, research
and development, modern logistics of large diversified industrial group.
