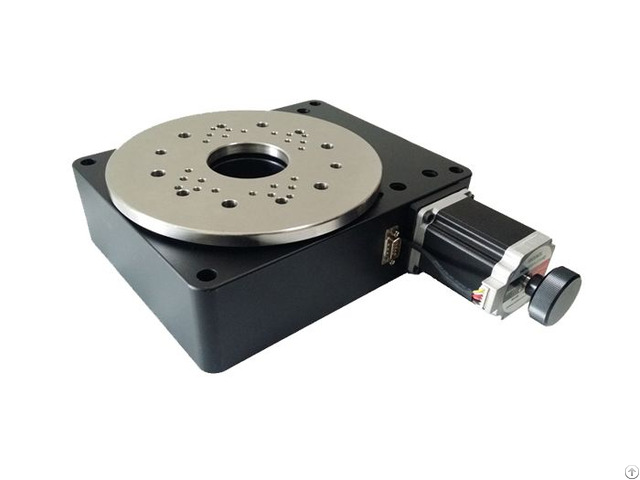

Motorized Rotation Stage Electric Rotating Machine Pt Gd204 - China

Specification: 1 Item Number: PT-GD204 2 Rotation Range: 360° of Continuous Rotation 3 Diameter of Platform: Ø200mm 4 Drive Mechanism: Worm Gear 5 Worm Gear Ratio: 180 : 1or 45 : 1 6 Stepper Motor (1.8°): 57BYG - Stepping Motor with 2-Phases & 1.8° of Step Angle 7 Material – Finish: Aluminum Alloy - Black-Anodized 8 Load Capacity: 100Kg 9 Weight: 12kg Accuracy Specifications 1 Design Resolution: 0.01°=36”, Non-MS Driver; 0.0005°=1.8”, 20MS Driver 2 Rotational Velocity (Max): 25°/sec 3 Repeatability: 0.002°=7.2” 4 Absolute On-Axis Accuracy: 0.005°=18” 5 Run-Out of Top Plate: 10μm 6 Backlash: 0.002°=7.2” 7 Eccentricity: 20μm 8 Lost Motion: 0.005°=18″ 9 Parallelization: 50μm Motorized Rotation Stage, Electric Rotating Machine, PT-GD204 High precision, ultra steel axises of importing, achieve high precision, high load stable motion.

Outer circle has scale, interface, convenience for signal’s output.

1、 Standard stepper motor and DB9 interface, choose to controller flexibility, We also can provide fully customized motion systems .

Regular stage set with stepper motor and RS232 interface, could connect with motion controller easily.

2、 *High precision Worm gear design for high accuracy, loading and long working time.

*Forward and reverse rotate are possible *The stage could use in vertical and assemble with other stages 3、 1 - Prototype stepper motor57 stepper motor (1.8°).

Servo motor available for replacement on request 2 - Fine steel rotary shoe, high accuracy, massive loading capacity and long using life.

3 - Fine grinding worm drive with comfortable movement and backlash can almost ignored.

4 - Clearance elimination design.

5 - The motor is connected with the worm via high quality elastic coupling, synchronized drive without noise.

6 - Scaling on the outerring of the platform, easy scale reading.

Product details:

Advantage:

PDV has many different motorized linear translation stage including motorized translation stage, motorized linear stage, High Precision Motorized Goniometer Stages High Precision Motorized XY Stages、 High quality China Motorized Linear Stage.

They can be any combination, building block structure, can satisfy any scene usage requirement.

The products can be produced according to your needs if it don't meet your need.
