Motorized Goniometer Stage - China

Specification:

This product is a customized product with a long lead time.

If necessary, please confirm the delivery date and other related issues with the sales staff.

Item Number PT-GD308 Angle Range ±7° Platform Size 280×273mm Drive Mechanism Worm Gear Guide Crossed Roller Bearing Stepper Motor (1.8°) 86BYG Main material Aluminum Alloy surface treatment Black-Anodized Load Capacity 150kg Design Resolution ≈0.007°≈25″(Non-MS Driver) ≈1.3″(20MS Drive) Rotation Center Deflection Accuracy 0.03 mm Velocity 10°/sec Repeatability 0.1 Backlash ±3″ Lost Motion 2″ Product details:

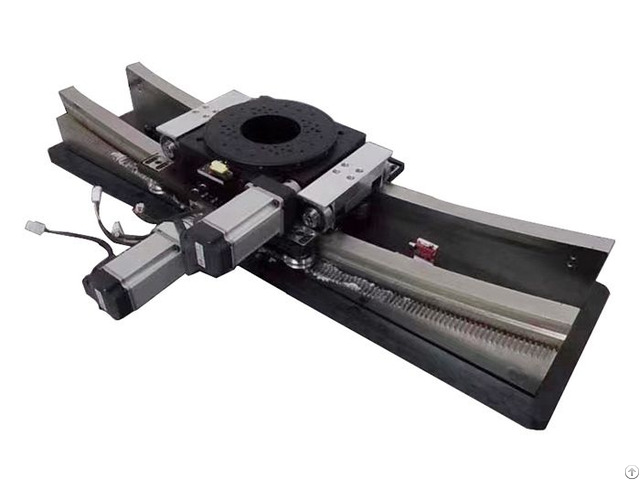

PT-GD308 Motorized Goniometer Stage, Arc Swing Stage ± 7 ° Tilt Adjustment Platform, Load Capacity 150KG
