Mobile Oil Free Screw Air Compressor - China

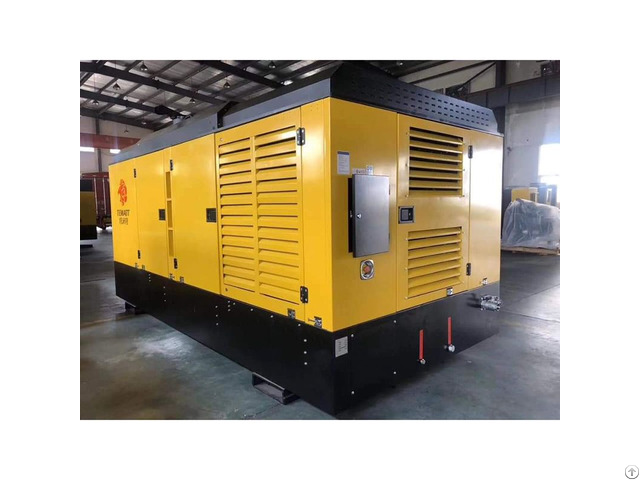

1700/1500CFM Mobile Oil Free Screw Air Compressor

Product Description

TEWATT 1700/1500 CMF & 8.6/10 BAR Mobile oil free screw air compressors are equipped with high efficiency TEWATT two stage air-end, powered by CUMMINS heavy duty industrial engine, low fuel consumption with global warranty.

Tewatt mobile oil free screw air compressors always meet the operation requirements in extremely high & low temperature, heavy dust, high altitude environment.

Suitable for water well drilling, geothermal air drilling, oil & gas exploration, mining & DTH drilling etc.

Features&Benefits:

Tewatt Screw Air-end Super rotor, low speed (5 years/10000 hours warranty)

Strong power, fuel saving CUMMINS Engine with Global Warranty Service.

Tewatt Intelligent Controller.



Safe and Reliable Air Filter & Intake System.

Technical Specifications:

Model TWT1170D-10.3T(OFD)

Compressor Stage Two

Free Air Delivery (CFM/ M3/min) 1700/1500 (45/43)

Working Pressure (psig/bar) 125/145 (8.6/10)

Lubricant Oil /

Engine Manufacturer CUMMINS

Engine Model QSX15-FR11110

Rated Power (HP/KW) 600HP/448KW

Rated Speed/Idle (rpm) 1750/1600/1350

Fuel Consumption (75%) 74L/H

Battery Voltage (V) 24V

Fuel Tank Capacity (L) 800 L

Discharge Connections 3”NPTx 1, 1”NPTx1

Wheel Size*Qty 21x12-16X4

Weight (Kgs) 9600Kg

Dimension (mm) 6400*2250*2580mm

Noise {dB(A)} 76±5

Working Temp.

(℃) -10℃~50℃(special conditions can be customized)
