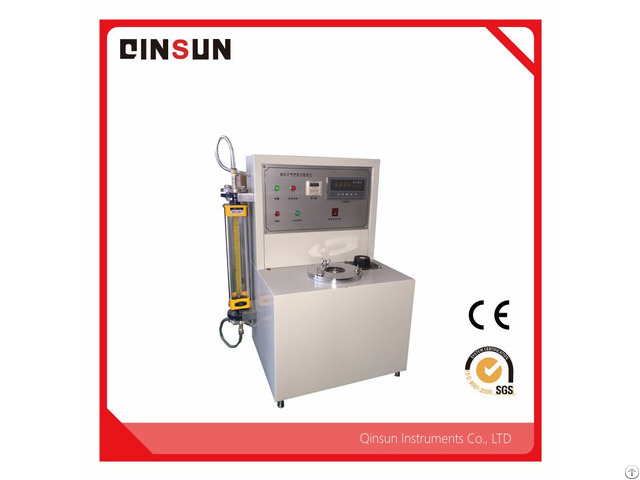

Medical Testiles Air Flow Resistance Tester - China

Introduction The textile airflow resistance tester is used to determine the anti-penetration properties of ordinary fabrics and medical protective masks to airflow at a constant flow rate .

It is mainly used for the determination of air penetration of textiles, cotton, and space cotton.

The tester is one of the important means to identify the comfort and hygiene of clothing textiles, especially medical textiles.

Standards BS En 14683-2005 Surgical masks - Requirements and test methods GB 19083-2010 Technical requirements of surgical masks

GB2626-2006 Respiratory protective products-Self-priming filtering particulate respirator overview

YY 0469-2011 Surgical masks

YYT 0969-2013 Disposable surgical masks Features The instrument consists of a air source that can regulate the flow rate, a sample holding device, and an air pressure measurement system.

Sample chuck made of stainless steel with built-in rubber washer ensures that the gas leak will not occur.

Digital display airflow resistance, with zero calibration and accuracy correction function.

7-inch color screen, capacitive touch screen, multi-point touch operating system, easy to control, multi-language display with English-Chinese switchable.

System has built-in standards.

Select the corresponding standard number to start the dynamic and static test with corresponding standard requirements; System also includes customized dynamic and static test mode.

Technical Parameter

Items Parameters

Operation mode Full color touch screen control

Language Chinese– English interface

Air source Suction type

Air flow rate 5-100min/L

Sample plate 190mm round plate

Sealing method O-ring sealing

Air ventilate aperture of sample 74mm/25mm

Differential pressure sensor range 0-1kPa

Sample size Protective mask or 120mm*120mm fabrics

Power supply 220V 50Hz
