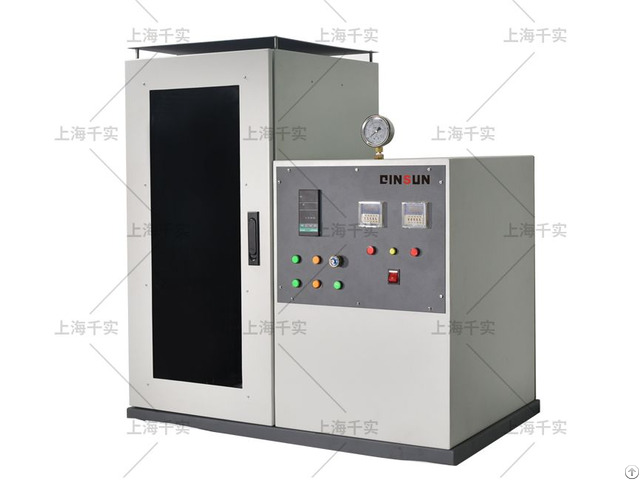

Medical Face Mask Fire Resistance Tester - China

This Medical Face Mask Fire Resistance Tester is mainly used to test the flame retardant performance of medical masks.

The combustion performance of the mask is measured through a head mold wearing a mask de-vice to contact with the flame at a certain linear speed.

The device is mainly used in the field of medical protection, and also can also be used for

testing flame retardant properties of other textile coating materials.

GB 19083-2010 Technical requirements of

medical protective masks

YY 0469-2011 Technical requirements of

medical surgical masks-Blood penetration

test device

GB 2626-2006 Respiratory protective products, Self - priming filtering particulates respirator-flammability

BS EN136-1998 Respiratory protective de-

vices -Full face masks - Requirements testing, marking Items Parameters

Linear velocity of head automatic movement (60±5)mm/s

Flame height 40±4mm

Flame temperature measurement Thermocouple detection

Burner height adjustment range 30mm

Metal head mold surface thickness 2~3mm, Resistance to flame combustion

Combustion timer 0~9999.9s

Accuracy ±0.1s

Power supply AC220V, 50Hz, 500W

Weight About 30kg

When the flame is (20±2)mm above the burner, the temperature is (800±50)℃.

distance between the top of the burner and mask lowest point is(20±2)mm.
