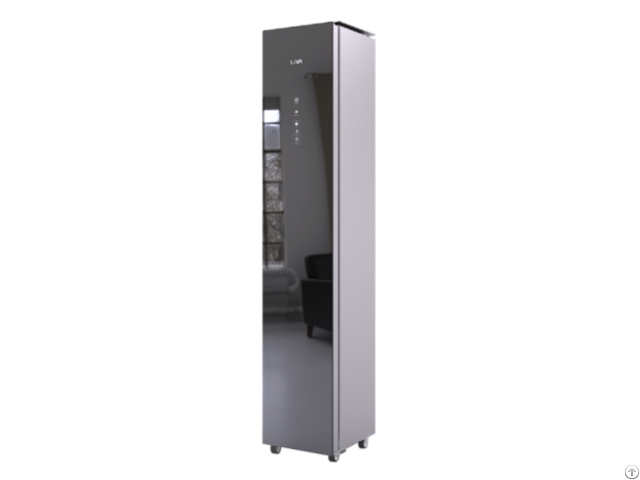

Liva Eas501 Air Sterilizer And Deodorizer - Korea

340(W) x 360(D) x 1790(H)mm

67kg

165.3m2

220V, 60Hz, 70W

White / Mirror

Environmentally-friend ly aluminium

Moving wheels can be fixed

Three outlets (front, left, right side)

Combined filter(prime filter, activated carbon filter and HEPA 13 filter)

Sterilization modules(20 pieces of UV-LED light, 8 pieces of photo catalyst )

activated carbon filter

One-button start

Power reminder: LOGO light

Operation: Four indicators stand for different scale of wind force

Inspection : The fault indicator(Fan/UV/Filter) is on to remind customers to replace filter/sterilization modules or check fan failure 3 high-efficient filters : Remove dust, particles (PM2.5)；Four sterilization modules (UV-A led 20 ea, TiO2 8 ea): Sterilize and deodorize the air flow for up to 6 times; UV-C lamps: Enhancing the sterilizing effects, and the pathogenic microorganisms cannot escape from this path; Deodorization: Create a comfortable environment by eliminating the unbearable odors.

Fuction:

1 - Three steps of filteration Medium filter: Eliminates large particles, like dust, hair, pollen, etc.

Activated carbon filter: Removes harmful chemical pollutants and absorbs odor.

HEPA filter (H13): Traps microscopic dust(down to 0.3 microns) Medium filter/Activated carbon filter/ HEPA filter (H13) 2 - The high reactive hydroxyl radicals (-OH) is formed after the titanium dioxide(TiO2) photocatalyst is irradiated by the UV-A light.

The high reactive hydroxyl radicals (-OH) initiates redox processes leading to the degradation/mineralizatio n of adsorbed organic and inorganic compounds.

Meanwhile, the reactive species will cause deleterious alterations in cellular structure, microbial inactivation and possible destruction.

Polluted air(mixed with bacteria& odors)/Formation of -OH/ React with the cell wall/ Destroy the cell wall and form harmless water 3 - The functions of the high reactive hydroxyl radicals (-OH): Sterilization& Deodorization Fitted with four sterilization modules, the air flow will be sterilized and deodorized for as many as six times.

Structure:

1) Three outlets(located on the front side, left side and right side) Release fresh air.

2) LED signal Check whether the machine is connected to the power supply.

3) Notification There is either abnormal conditions occur in the filter or the filter has to be replaced due to the limited lifespan.

4) Air intake and fresh air releasing The clean air will be released after a series of special disposal.

5) Main Control The main parts are installed in this board.

6) Sterilization (OH) Sterilize the pathogenic materials and remove the unbearable odors.

7) Purify and deodorize The filters (medium filter, activated carbon filter and HEPA filter) are installed to purify the dust and deodorize the odor.

8) Travelling wheel Convenient to move.

Fitted with a stopper and can be fixed after installation.

Why air deodorizer & sterilizer? Indoor air pollutants are invisible to us, but the threats they pose to the public health cannot be ignored.

They can be placed into two groups, biologic and chemical.

However, air purifier has barely any effect on biologic pollutants.

LIVA Air Doctor can remove dust, kill harmful microorganisms and eliminate odors at one time.

It goes without saying that the multi-functional air deodorizer & sterilizer is indispensible to clean indoor air!

Company Contact:

• Posted By: evertree co., ltd

• Phone: 827051172469

• Address: 1F, 170, Saneop-ro 155beon-gil, Gwonseon-gu, Suwon-si, Gyeonggi-do,16648, Republic of Korea., Suwon-si , Gyeonggi , Korea

• Email:

• Business Description: Evertree is the inventor and manufacturer of self-service book sterilizer.

  We are focused on inventing various high-end sterilizers, like book sterilizer, air sterilizer& deodorizer, document sterilizer, etc.

  Products successfully exported to more than 30 countries around the world.
