Lignostation - China

LIGNOSTATION™ is a compact, high-resolution system for preparing wood surfaces and recording the tree ring parameters and the wood density.

LIGNOSTATION™, developed in cooperation with the University of Freiburg, is based on an entirely novel concept.

A precision mill prepares the measuring radii on the wood surface.

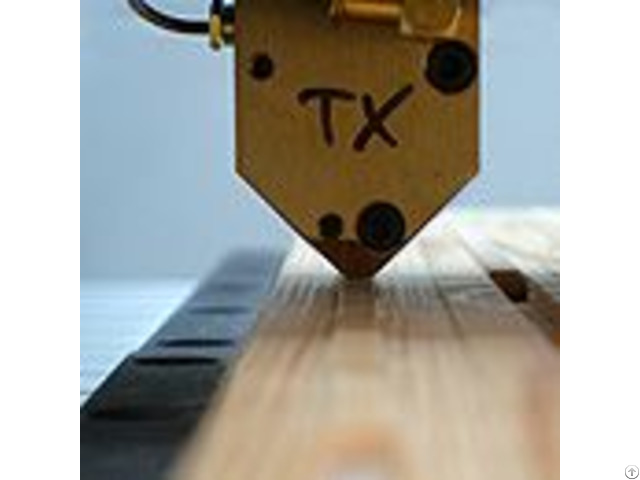

Then, precise scans are obtained using a high-frequency probe.

At the same time, optical scans of the surface can be made and analyzed in comparison with the image.

The entire system is computer-controlled and relieves you of a great deal of time-consuming routine tasks.

You attach the sample, define the measuring radius on the PC screen, and LIGNOSTATION™ will do the rest, from preparation up to measurement.

You can fully concentrate on the scientific evaluation.

Applications

lignostation_1 - jpg

Dendrochronology

Density measurement

Dendroecology

Dendroclimatology

Forestry

Geography Benefits

Direct high-frequency scanning system

No development of film required

Automated procedure

Compact, space-saving system (300 x 100 cm base area/footprint)

No X-ray emissions

Moderately priced

Technical details

Density measuring using a high-resolution high-frequency probe

Optical scans using a high-resolution camera

Sample material: cores or stem disks

Maximum length of measurement: 450 mm x 450 mm

Image resolution: <= 100 microns (= 1/10 mm)

Example of a complete system:

LIGNOTRIM™: High-resolution surface mill

LIGNOSCAN™: High-resolution electromagnetic scanner

LIGNOSCOP™: Microcamera scanner

LIGNOVISION™: Software for tree ring detection and evaluation of the density curves

Flexibility

The individual system components can be adapted to your specific needs: Surface treatment: LIGNOSTATION™ + LIGNOTRIM™

Density analysis: LIGNOSTATION™ + LIGNOTRIM™ + LIGNOSCAN™ + LIGNOSCOP™

Optical analysis: LIGNOSTATION™ + LIGNOTRIM™ + LIGNOSCOP™

Optical and density analysis: LIGNOSTATION™ + LIGNOTRIM™ + LIGNOSCAN™ + LIGNOSCOP™
