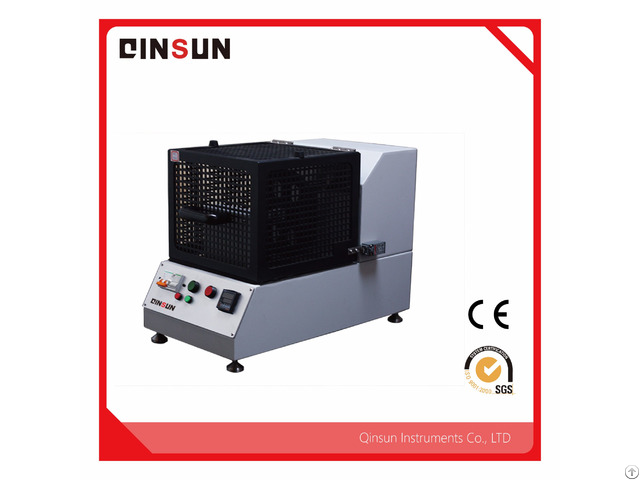

Leather Water Vapor Permeability Test Instrument - China

leather water vapor permeability testermeasures water vapours permeability of leather.

The bottles have the nut of the circular opening.

The bottles are mounted on the bottles holders which rotate at specified revolution per minute with the help of motor pulley belts.

The axis of the bottles is parallel to the axle of the bottles holders.

A fan mounted in front of the mouths of the bottles and consisting of three blades in planes that are inclined at 120º to one another.

The planes of the blades pass through the prolongation of the axle of the wheel.

A preset Digital timer is mounted for setting total no.

of hours of instrument movement.

All the components are chrome/ Zinc Plating Painting for corrosion resistance long life.

Standards:

UNI EN IUP/15, UNI EN 13515, EN ISO 20344: 6.6, IUP 15, BS 3144 Method 24, SLP 25, DIN 53333, ISO 17699, DIN 53 429, METODO - 309 WI 009 Applications:

Water Vapor Permeability Tester is mainly applicable to leathers and textiles used in footwear uppers and clothing where it gives a measure of the ability to remove perspiration from the surface of the wearer's skin.

The tester is used to determine the amount of water vapour a material will transmit through its structure in a specified time.

Product information:

The vapor permeability of leather is evaluated by means of measuring the weight of water-vapor that permeates to specimen per unit time and per unit area.

The main functional components includes: testing holder clamp, ventilation fan, control panel with functions of switch, time setting and recording.

The machine has six separate test stations on a rotary table and each one has a sample holder.

Silica gel desiccant is placed in the holder and the test material is placed over the neck of the holder and secured by a screw top.

After weighing each holder, complete with silica gel and sample material, the holders are placed and locked into the rotary mechanism.

After 7-8 hours the complete holder is weighed again and the gained weight is used to determine the degree of permeability.

It is essential that the entire operation is carried out in a conditioned atmosphere of 20°C and 65% per cent relative humidity.

In addition to the standard equipment, the tester is also supplied with a built-in timer to record the number of hours that testing has been carried out.

Technical Parameters:

Test stations: 6;

Electronic timer for recording the testing times;

The fan blade: 3;

Dimension of fan blade: 75×90mm;

Angle between fan blades: 120°;

Gaps: 10±5mm;

Speed of fan: 1400r/min;

Rotary speed of specimen: 75r/min;

Diameter of sample holders: 30±1mm;

Diameter of fixtures: 30±1mm, helical;

Weight: 45kg;

Dimension: 350×570×450mm;

Power Consumption: 300W.
