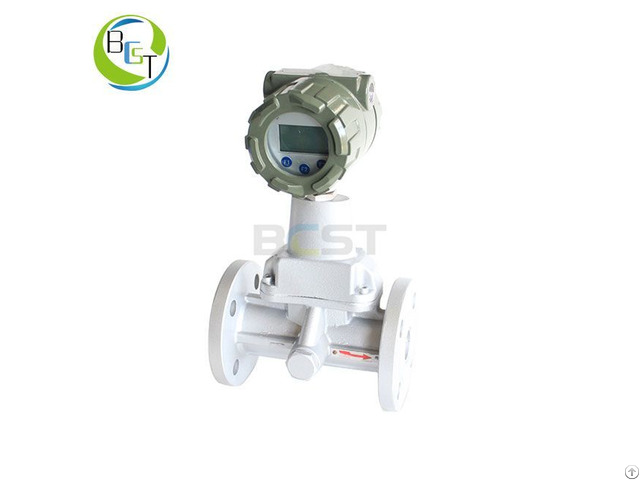

JC040 Vortex Natural Gas Flow Meter

JC-040 series smart precession whirlpool flowmeter uses new microprocessing techn ology with strong function, wide flow range, simple maintenance and co nvenient installation & use.

It is widely used in industries such as petrol, chemical, power, metallurgy and coal, etc.

BCST Natural Gas Flow Meter Feature

1 - Built-in pressure, temperature and flow sensors with high safety, compact structure and exquisite shape.

2 - Local indication of temperature, pressure, instantaneous flow and accumulative flow.

3 - Use new signal processing amplifier and unique filtration technology, effectively eliminate interfering signal generated by pressure fluctuation and pipeline vibration, greatly improve anti-interference ability of flowmeter, and make good stability of little flow.

4 - Special time indication and real-time data storage function; under no circumstance will the internal data be missing and will be stored forever.

5 - Password protection

6 - Low power consumption, internal battery supply, no need for external power supply.

1 - Specification, basic data and performance

Model Nominal Diameter

DN(mm) Flow Range (m3/h) Instrument Factor

(1/m3) Pressure Rating (MPa) Accuracy Remarks

JC-040-25 25 2.5 - 30 240000

1.6; 2.5; 4.0

1.5 Aluminum alloy housing for PN≤1.6MPa; cast steel or SS housing for PN≤4.0MPa; please specify for PN＞4.0MPa

JC-040-32 32 4.5 - 60 90000 JC-040-50 50 10 - 150 24000 JC-040-80 80 28 - 400 4800 JC-040-100 100 50 - 800 2800 JC-040-150 150 150-2250 680 JC-040-200 200 360-3600 210 Note:

1 - Flow ranges listed in the table are those tested in the factory (Normal temperature, normal pressure, air medium, ρ = 1.205 kg/m3)

2 .

Flow range will be enlarged along with the enlargement of pressure

Standard Conditions: P = 101.325kPa, T = 293.15K 3 - BCST Vortex Natural Gas Flow Meter Use Conditions

Ambient temperature: -30 ~ +60℃

Medium temperature: -20 ~ +80℃

Relative humidity: 5% ~ 95%

Atmospheric Pressure: 86kPa ~ 106kPa

4 - Electric Performance

Working Power: external power: +24VDC

Internal power: 3.6V lithium battery

Power Consumption: external power, ＜ 1W

Internal power, ＜0.3m W, two-year service life for Lithium battery

Output: frequency signal

4-20mA current signal: corresponding flow 0~Qmax, corresponding flow of 20mA can be set by user.

RS485 Communication: can transmit temperature, pressure, instantaneous flow and accumulative flow.

5 - Explosion Proof: Exd II CT6

6 - Enclosure: IP65

1 - When ordering, proper specification should be selected according to nominal diameter, flow range, nominal pressure, max pressure, temperature and ambient conditions.

Explosion proof type must be selected for hazardous locations.

2 - Generally the flowmeter is basic type, if you require pulse output or RS485 communication please specify when ordering.

3 - Assorted product: can go with JCPR-7600 Flow totalizer, via RS485 interface to realize off-site indication (distance no more than 100m)
