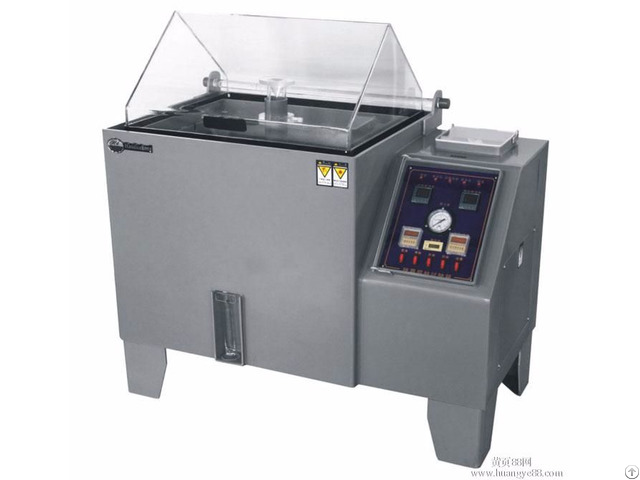

Iso Astm Appoved Salt Spray Tester - China

Application：

Corrosion resistance test for products after treated by plating, anodized, spraying, and anti-rust.

Standard: ASTM B-117, DIN50021-75, JIS H8502, IEC 68-2-11, MIL-STD-750, ISO 9227, ISO 12944-6, ISO 20340, ISO 7253 Feature & Parameters

1 - The whole system using PVC plate, lined with the use of advanced three-dimensional reinforcement ring technology, structure and strong real, never deformation.

2 - Five direction heating system to ensure heat distribution within ±1oC.

3 - Highly advanced spray nozzle with accuracy of spray misting within ±0.3ml/80cm2.

4 - Saturated air with Henry's law.

In order to heated humidification, and provided the necessary laboratory humidity.

5 - Temperature control uses P.I.D temperature controller within ±0.3oC accuracy.

6 - The only use of early warning device test solution is too low, when the test solution is only enough for 5 hours and then spray the buzzer supplement will notify the user to ensure that the test of the value of the continuous spray.

7 - The only use the full detection system, when a failure occurs, you can display or alarm lights inform.

8 - With a spray and standing time period setting (for CAPA, SAE, ASTM).

9 - Meets ASTM B117-03 the new improved design.

MODEL

STD-9701

STD-9701C

TEST APPLICABLE

NSS, ACSS, CASS

CORK

TEST TEMPERATURE

35oC±1oC or 50oC±1oC

38oC±1oC 80%~99%RH

INSIDE DIMENSION

900x600x500(WxDxH) mm

OUTSIDE DIMENSION

1420x780x1280(WxDxH) mm

VOLUME

270 LITER

WEIGHT

150KGW

TEST SPECIMAN (150x70mm)

at angle of 20o±5

48 PCS

SOLUTION TANK

CAPACITY

30 LITER

TESTING TIME

180HR

POWER CONSUMPTION

220V SINGLE PHASE 3KW
