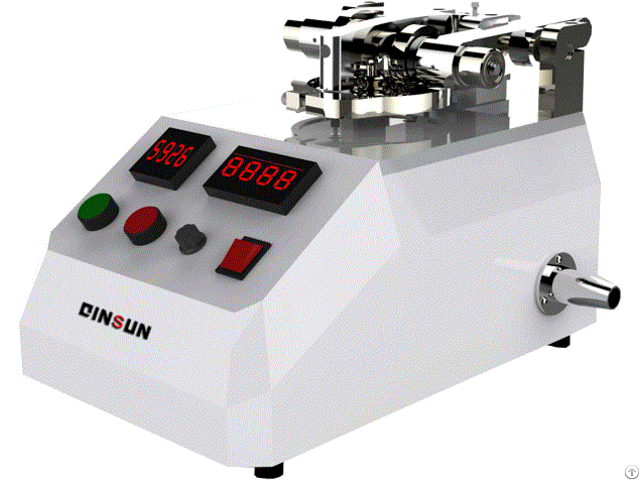

Iso 9352 Taber Abrasion Resistance Tester - China

Range of application

TABER abrasion resistance tester and wear resistance tester can be replaced by wheel and weight, which apply to the abrasion resistance performance test on fabric, cardboard, paint, leather, tile, glass and natural rubber, method is simple and easy to operate, which has been widely used in various industry's testing laboratory.

Abrasion tests, the material is standard wheel friction after a certain number of turns, evaluate its abrasion resistance material weightlessness rate by calculation.

Abrasion wheel after pre grinding standard method, test results can reach very high consistency.

Core advantages

Simple operation, display real-time speed, the speed control can be achieved 30-75rpm adjustment, wearing can be preset number of turns.

Arm can match with balance weights, accurate weight balance abrasion arm, to realize the ASTM standard which requires 125 g pressure requirements

Vacuuming mouth height is adjustable, and adapt to different thickness materials, efficient removal of debris, improve test accuracy

Brand motor, mute, low noise, smooth operation Features:

Operation panel with LCDscreen, display real-time speed with speed button, 30-75rpm speed adjustable.

The number of wear cycles can be preset, setting range 1-999999 times.

The rear arm can precisely balance the weight of the worn arm with balance weights to meet the 125 g pressure according to the ASTM standard, as well as other standards and special pressure requirements.

Vacuum pump suction height is adjustable to meet material testing in different thickness.

Besides, it can be efficiently eliminate debris to improve test accuracy.

Specifications

spinning speed adjustable within the range of 30-75r/min (digital)

The sample surface diameter 100mm

Sample table diameter 113mm

setting range of Number of turns 1-999999

Air pressure 250g

Weight (based on purchase) Counterweight, 250g, 500g, 750g, 1000g

Wheel pressure range 125g, 250g, 500g, 750g, 1000g, 1250g

Vacuum arm height Adjustable

power 220V, 50Hz

Size 220mm×380mm×300mm

weight 20kg Basic configuration

G270 Taber Abrasion Resistance Tester (250g, 500g, 1000g)

Weight × 1 set (250g, 500g, 1000g each one pairs)

Optional Accessories 27001 1 pair of 125g Balance weights and fixed screw

27002-1 1 pair of Import original abrasion wheel CS-10×1

27002-2 1 pair of Import original abrasion wheel H-18×1

27003 Import the original decoration sandpaper (grinding disc) S - 11 x 1 package (100 pieces/package)

27004 Import original sample sticker S - 36 (50 / package)

27005 Diamond wheel polisher (friction wheel polishing Taber)

XC001 One set of the vacuum cleaner
