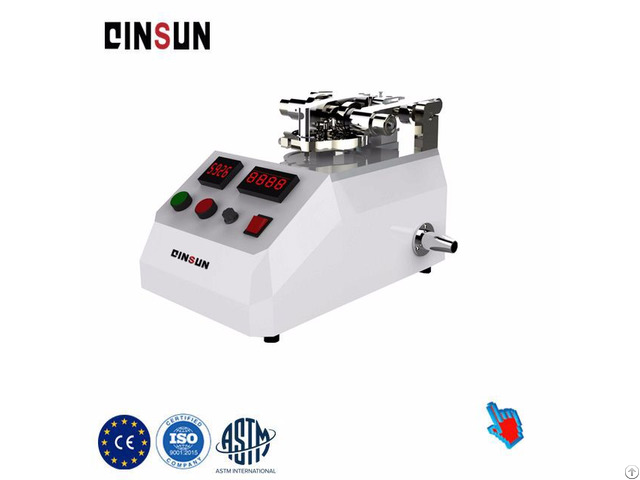

Iso 5470 Taber Type Abrasion And Wear Test Instrument - China

Taber Abrasion Tester, which often referred to as “Taber Abraser” or “Taber Abrasion Machine”, is a testing machine to test the wear resistance of fabrics, leather, and more.

It complies with ASTM D3884/D3389/D4060, ISO 5470, etc.

Taber abrasion tester mainly through the rotation of the grinding method, use different types of friction wheel for rotating on the sample to detect leather and plastic materials wear resistance performance.

Select the Standard applicable weight group to detect material characteristic.

Check the weight loss of the sample outer surface, such as noticeable mechanical damage.

Standards

1 - ISO 9352 Plastics - Determination of resistance to wear by abrasive wheels

2 - ISO 5470 Rubber- or plastics-coated fabrics - Determination of abrasion resistance

3 - ASTM D1044 Test method for resistance of transparent plastics to surface abrasion

4 - ASTM D3884 Standard guide for abrasion resistance of textile fabrics (rotary platform, double-head method)

5 - JIS K6902 Testing method for laminated thermosetting high-pressure decorative sheets Features

Logic circuit control, simple and reliable operation.

The height of the suction port is suitable for different thickness materials

250g wear arm.

Two kinds of wear wheels can be adapted to a variety of materials.

Scope of application:

Testing, including metal, paint, sheet surface, coating materials, textiles, leather, rubber and other Abrasion resistance performance.

Applications: suitcases, carpets, cardboard, clothing, glass, plastic coating, tiles, metal coating, paint, varnish, decorative flakes, high pressure flakes, plastic, textiles, flexible floor mats, traffic paint, anodized, Electronic components, decorative panels, waxes, labels, leather cases, dental materials, Automotive interior, resins, furniture and so on.

Experimental principle:

The "X" type friction is produced by the rotation of a pair of friction wheels.

Equipped with a full set of auxiliary weights, sample holder, friction wheel, vacuum device, membrane control keyboard and electronic counter.

Test piece: OD 108mm, inner diameter 8mm, 3mm (D)

Grinding wheel: 2 "(M * 45mm) 1/2" (W)

Grinding wheel central spacing: 63.5mm

Grinding wheel and test plate central spacing: 37 ~ 38mm

Swing speed: 60 / 72rpm

Heavy: 250g, 500g, 1000g

Counter: LCD, 0 ~ 999.999

Volume: 530 × 320 × 310 + vacuum cleaner

Weight: 18kg (without vacuum cleaner)

Power: 1φ, 220v / 50HZ Technical Parameters Items Parameters Rotating speed 60rpm-72 rpm (adjustable) Testbed External diameter 108mm, Inner diameter 8mm, thickness 3mm Grinding wheel Diameter 2 Grinding wheel spacing(center) 63.5mm Loading 250g, 500g, 750g, 1000g Power 1φ, AC220V, 50HZ
