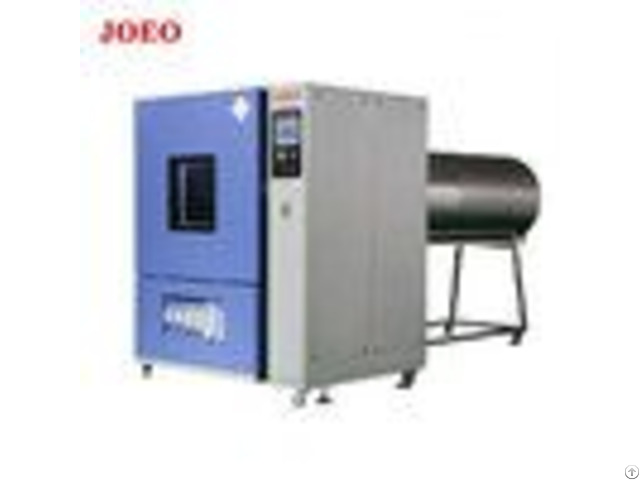

Ipx9k Rain Test Chamber Manufacturer - China

Application

JOEO ipx9k water spray test chamber, ipx9k test chamber, rain test machine, rain testing equipment can be used to evaluate the waterproof and rain resistance of materials.

It can be used to evaluate materials and their ability to withstand salt spray corrosion protection.

The main applications of ipx9k water spray chamber are passenger cars, auto parts, lamps, motorcycles and other vehicles, as well as the electrical and electronic industry.

Description

IPX9K water spray test chamber device simulates a high-temperature and high-pressure environment, and conducts water spray tests on the test subjects.

Ipx9k water spray test chamber device has four nozzles, each at 0 ° 30 ° 60 ° 90 °, and conducts water spray tests on high-temperature and high-pressure water flow from four angles.

When use the JOEO IPX9K high pressure water spray test chamber, place the sample on a turntable.

When the device starts and the water temperature reaches a certain temperature, the water flow is controlled by a pressure gauge and flow meter, and the water sprayed from the nozzle is sprayed onto the tested object.

For small enclosures (maximum size not exceeding 250mm), the rotational speed of the turntable is 5 ± 1r/min.

All four angles were tested for 30 seconds.

For large shells (maximum size greater than or equal to 250mm), spray from four directions to cover the entire surface of the shell, and the spray angle should be as perpendicular as possible to the spray surface.

The test time is 1 minute per minute, with a minimum of 3 minutes.

Features

IPX9K waterproof grade suitable for testing products.

The case is made of 304 stainless steel

Water spray test equipment external 304 water tank for circulating water, automatic control of water intake, and low water level alarm detection, can effectively prevent water pump damage due to lack of water.

Turntable all use SUS304# stainless steel plate, to ensure long-term use without rust

JOEO water spray test equipment fan-shaped nozzles evenly distributed at 90° on the right side of the box, designed and manufactured in strict accordance with the standard.

Turntable drive: domestic stepper motor is adopted, the speed can be set on the touch screen (adjustable), and can be stepless adjusted according to the standard range.

Test time can be set on the touch screen, setting range : 0-999min(adjustable).




Ipx9k rain test chamber is made of Italian high pressure water pump, which can be used for a long time.

Diagram

1 - Fan nozzle：Pressure(100 ± 5)Pa；Capacity(15 ± 1)L/Min 2 - Cover plate 3 - Impacting plate 2*30mm(Moving direction 2mm) 4 - The suction device 5 - Working width Picture 7-Equipment used to determine the impact force of water jets to prevent high-pressure/ steam jet cleaning, waterproof grade 9k Diagram

1 - Fan nozzle 6 Position 1 2 - Equipment of testing 7 Position 2 3 - Rotary table 8 Position 3 4 - Rotation axis 9 Position 4 5 - Reference point(0、30、60、90°) , endorsed cylinders in test equipment Picture 9-Test Equipment used to determine high-pressure steam jet cleaning, waterproof grade 9k.
