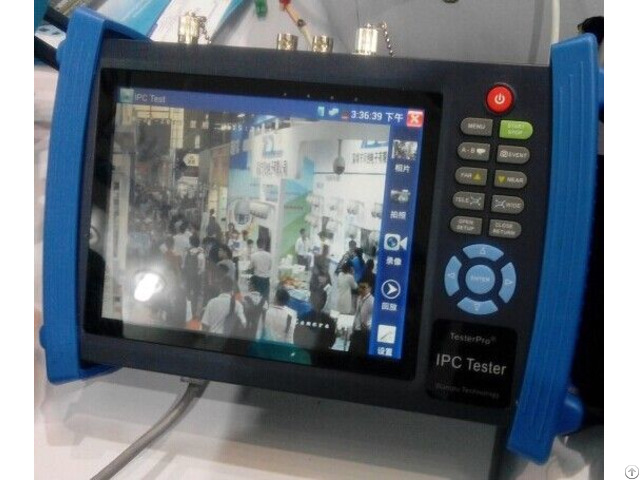

Ip Camera Tester - China

Model IPC-8600Tmodels optional Display 7 inch Capacitive touch screen, resolution 800(RGB)x 600

Network port 10/100M auto adjust, RJ45

WIFI Built in WIFI, speeds150M, receive wireless camera image etc

IP camera type ONVIF, ACTi, Dahua IPC-HFW2100P, Hikvision, DS-2CD864-E13, Samsung SNZ-5200, Tiandy TD-NC9200S2, Kodak IPC120L, Honeywell HICC-2300T, Aipu-waton IP5000-BC-13MP/IRS06-13MP , fine-Tida IPC, FSJ BY-1080Q, WEISKY IPC camera etc.

Customized welcome Video level test 1 channel BNC Input & 1 channel Output, NTSC/PAL (Auto adapt)

Video level meter PEAK video signal level, SYNC signal level, COLOR BURST chroma level measurement Zoom Image Support Analog camera and IP camera image zoom /move Snapshots, Video record, Record playback Image Screenshots, record, save, view and record play back

HDMI output 1 channel HDMI output, support 1920*1080P

12V/2Apower output Output DC12V/2A power for camera

5V power output 5V 2A power output, as a mobile phone Power bank PoE power output 48V PoE power output, Max power 24W。

Audio test 1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone PTZ control Support RS232/RS485 control, Baud 600-115200bps, Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc

Video Signal Generator Output one channel PAL/NTSC color bar video signal for testing monitor or video cable.

(red, green, blue, white and black color )

Network color bar generator Local side PC can login the tester, send the signal by network, test network connection communication whether normal UTP Cable tester Test UTP cable connection status and display in the screen.

Read the number on the screen Data monitor Captures and analyzes the command data from controlling device, also can send hexadecimal Network test IP address scan, link scan, Ping test, Quickly search the connection IP camera and other device’s IP address Cable scan Search the cable by the audio signal

PoE test Measurement POE switch or PSE power supply voltage and cable connection status Digital Multi-meter (optional)* AC/DC Voltage, AC/DC current, Resistance, Capacitance, Data hold, Relative measurement, Continuity testing .

Testing speed: 3 times/ seconds, Data range -6600～+6600.

Optical power meter (Optional)* Calibrated Wavelength(nm) ：850/1300/1310/1490/155 0/1625nm

Power range(dBm) ：-70～+10dBm

Visual fault locator (optional)* Test fiber’s bending and breakage ( SM and MM fiber)

TDR cable test(optional) * Breakpoint (cable length) and short circuit measurement(BNC cable, telephone cable)

POWER

External power supply DC 12V 2A

Battery Built-in 7.4V Lithium polymer battery, 6500mAh

Rechargeable After charging 7~8 hours, normal working time 16 hours

Parameter

Operation setting Capacitive touch screen, OSD menu, Chinese/English Auto off 1-30 (mins)

General

Working Temperature -10℃---+50℃

Working Humidity 30%-90%

Dimension/Weight 231mm x 172mm x 52mm / 1.26Kg
