Integrity Analyzer - China

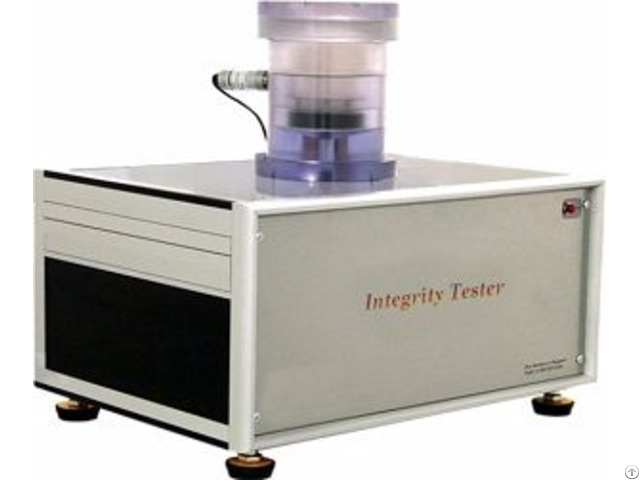

The Integrity Tester provides fully automated analysis of filter integrity.

The integrity test detects small amounts of flow through the sample before the bubble point is reached.

The user-friendly Integrity Analyzer features non-destructive testing and can test a wide variety of samples.

The integrity test can also measure bubble point.

Operation Principle A fully wetted sample is placed in the sample chamber and the chamber is sealed.

Gas is then allowed to flow into the chamber behind the sample with increasing pressure.

A flow meter is located in front of the sample and is used to detect gas flow through the sample prior to any pore being emptied of liquid, thus, the integrity is determined.

When the pressure reaches a point that can overcome the capillary action of the liquid within the largest pore, the bubble point has been found.

After determination of the bubble point, the pressure is increased and the flow is measured until all pores are empty.

Application Industries worldwide use the Integrity Analyzer for R&D and quality control.

Samples often tested include filter media, membranes, paper and battery separators.

Features Allows testing of sample under tension, compression, or elevated temperature to simulate actual operating conditions

Determines gas permeability of nearly impermeable samples (microflow permeability)

Windows-based software handles all control, measurement, data collection, and report generation; manual control also possible

Real-time graphical test display depicts testing status and results throughout operation

Nondestructive testing

Length of test less than 30 minutes

Wide range of acceptable sample sizes and types

Transparent sample chamber for visual confirmation

Minimal maintenance required Items Parameters

Pore Size Range: 0.013 - 500 microns

Permeability Range: 1 x 10 - 50 darcies

Sample Size: 1.75” - 2.5” diameter

Pressure Range: 0 - 500 psi

Pressurizing Gas: Clean dry, and compressed air or non-ammable and non-corrosive gas

Pressure Transducer Range: 0 - 500 psi

Resolution: 1 in 20, 000

Accuracy: 0.15% of reading

Mass Flow Transducer Range: 10 cm/min - 500, 000 cm/min

Power Requirements: 110/120 VAC, 50/60 Hz (others available)

Dimensions: 30” H x 19” W 18.5” D
