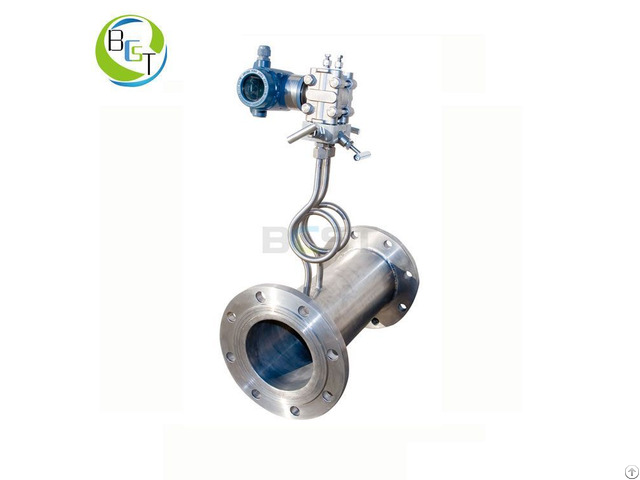

V-cone flowmeter is widely used in petroleum, chemical industry, natural gas, mining and metallurgy, steel, electric power, water, water supply and drainage, paper making, sugar processing, pharmaceutical, brewing, beverage, textile, printing, dyeing, chemical fiber, environmental protection and municipal engineering industry measurement.

Because of the unique structure of V-cone flowmeter, fluid in the pipe doesn’t sharply contract, the change of fluid pressure is stable, and differential pressure signal is more stable, to ensure accurate measurement of flow, especially small flow.

At the same time, because of suspension of axis and tapered body structure, when fluid close to V cone, pipe center velocity slows while velocity around pipe wall speeds.

High speed fluid directly washes inner cone throttling element and pipe wall, automatically realize cleaning, to avoid adhesion and accumulation of smudgy medium.

It is applicable for liquid containing gas, gas containing water and gas or liquid containing solid.

It has a unique advantage in measurement of coke oven gas, blast furnace gas, natural gas, liquefied petroleum gas, high-viscosity crude oil and smudgy.



BCST V-cone flowmeter is widely used in petroleum, chemical industry, natural gas, mining and metallurgy, steel, electric power, water, water supply and drainage, paper making, sugar processing, pharmaceutical, brewing, beverage, textile, printing, dyeing, chemical fiber, environmental protection and municipal engineering industry measurement.

Adopt National standard: GB/T2624-1993, SY / T6143-2004, International standard ISO5167

Pipe size: DN15 – DN3000

Basic Error: ±0.5%, ±1.5%, ±2.5%

Repeatability: ±0.1%

Working pressure: 2.5 MPa, 4.0MPa, 6.3 MPa, 10.0 MPa, 16.0 MPa, 26.0 MPa, 42.0 MPa

Medium temperature: < 550 ℃

Medium: Liquid, gas (including natural gas) or steam

Turndown: 10: 1

Requirements to straight tube section: upstream 0-3D, downstream 0-1D

Power supply: 1) external: 24V DC 2) Internal (built-in battery): 3.6V DC

Display: 8-digit LCD display of flow rate, totalizer, flux pressure, flux temperature & troubleshot code.

Output signal: 1) 4-20mA DC flow signal

2) Fit output signal of HRT protocol

3) No output signal for battery powered flow meter

Explosion proof: Intrinsically safe type IbIICT5

Enclosure: IP65

BCST V-cone flowmeter Model Selection

Nominal Diameter L (mm) C Nominal Diameter L (mm) C

DN15 150 M12 ×1.25 DN250 650 M20 ×1.5

DN20 150 M12 ×1.25 DN300 700 M20 ×1.5

DN25 150 M12 ×1.25 DN350 900 M20 ×1.5

DN32 165 M12 ×1.25 DN400 1050 M20 ×1.5

DN40 200 M12 ×1.25 DN450 1150 M20 ×1.5

DN50 250 M20 ×1.5 DN500 1260 M20 ×1.5

DN65 275 M20 ×1.5 DN600 1380 M20 ×1.5

DN80 300 M20 ×1.5 DN700 1500 M20 ×1.5

DN100 350 M20 ×1.5 DN800 1600 M20 ×1.5

DN125 400 M20 ×1.5 DN900 1750 M20 ×1.5

DN150 450 M20 ×1.5 DN1000 1850 M20 ×1.5

DN175 500 M20 ×1.5 DN1200 2000 M20 ×1.5

DN200 550 M20 ×1.5 DN1400 2200 M20 ×1.5

DN225 600 M20 ×1.5 DN1600 2500 M20 ×1.5
