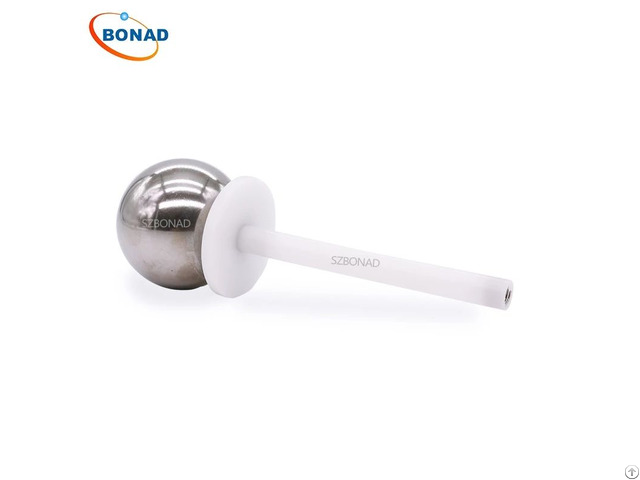

Iec61032 Ip1x 50mm Diameter Test Sphere Probe A - China

1 - IEC test probe BND-A which comply to IEC 60529 & GB 4208 standard, is necessary appliance for household and electrial appliance of against electric shock protection test.

it simulate the arms to conduct the IP protection level test, mainly used for the first characteristic number '1'.

2 - Application: The against electric shock protection test for household and electrial appliance.

3 - Notes: Sphere can not touch the live parts or close to the dangerous parts.

In the testing requirements of prevented against access to the dangerous parts, the test steel ball without thrust need to be used with push tension dynamometers, and steel body for protective coating need to apply to 50+5N(30+3N)thrust.

4 - Technical Parameters:

Ball Diameter: 50mm.

Baffle Plate Diameter: 45mm.

Baffle Plate Thickness: 4mm.

Handle Diameter: 10mm.

Handle Length: 100mm.

Standard: IEC60529.
