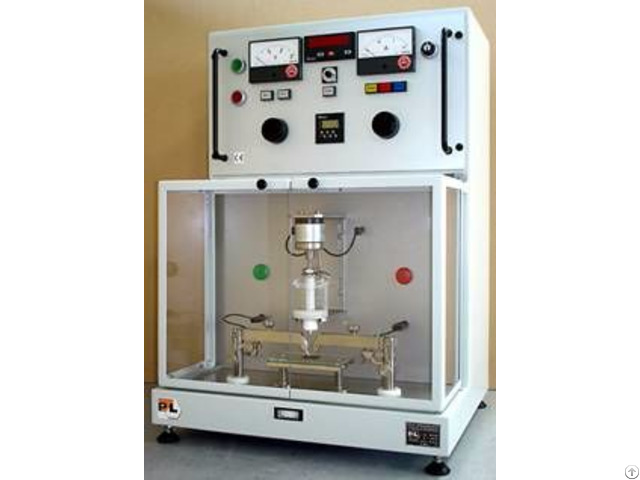

Iec60112 Proof Tracking Index Tester - China

Tracking index tester to Evaluate Leakage Resistance mainly used for the lighting equipment, low-voltage electrical appliances, household appliances, electrical appliances, electrical machinery, power tools, electronic equipment, electrical instruments, information technology equipment research, production and quality inspection departments, for the determination of related products leakage resistance test Standards

GBT 4207, IEC 60112 (2003), IEC 60745-1, IEC 60335-1, IEC 60598-1, IEC 60884-1 Tracking index tester is suitable for the research, production and quality inspection departments in the industry of lighting equipment, low-voltage electrical appliances, household appliances, machine tools, electrical machine, electric tools, electronic instruments, electro technical instruments, information technology equipment, as well as insulating materials, engineering plastics, electrical connectors, accessories industry.

Technical Parameters

1, Electrode material：electrode head - platinum (white gold)

2, Electrode pressure：1.0±0.05N。

3, Electrode distance：4.0mm ± 0.01mm, intersection angel 60°±5。

4, Electrode voltage：100~600V(48~60H Z)adjustable.

When short circuit current is in 1.0 + / - 0.1 A, voltage drop is less than 10%.

5, Drip height：30~40mm, adjustable

6, Drip size：44~55 drops/1cm3, adjustable

7, Drip time：30s±5s。

8, Number of drops：0~9999 drops, adjustable

9, Leakage judgment: when loop current is greater than 0.5A and maintaining for 2 seconds, the relay cuts off the current, indicating sample failed.

10, Test process: test procedures automatic control, independent ventilation.

11, Reference standards：IEC60112 , GB/T4207, GB4706.1

12, Working room volume：0.1m3(0.5 m3 or 0.75m3 customizable)

13, External dimension：630mm(W)×390 mm(D)×750mm(H)
