Horizontal Vertical Flammability Chamber - China

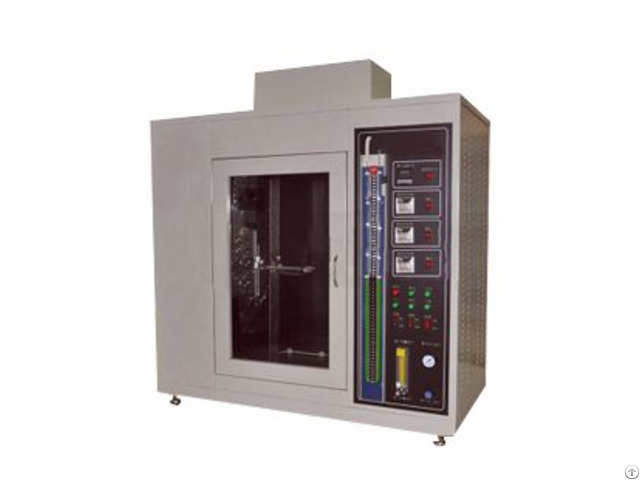

Horizontal & Vertical Flammability Tester (flammability chamber), used to determine the flammability of plastic materials for parts in devices and appliances.

UL94 Horizontal & Vertical Flammability Tester complies with UL HB, UL94, IEC 60695-11-10, etc.

Standards:

1 - Horizontal combustion test: UL94HB (ASTM D 635, IEC 60695-11-10, IEC 60707, ISO 1210)

2 - Vertical combustion test: UL 94 V-0, v-1, or v-2 (ASTM D 3801, IEC 60695-11-10, IEC 60707, ISO 1210)

3 - 500w (125mm) vertical combustion test: 5VA or 5VB (ASTM D 5048, IEC 60695-11-20, IEC 60707, ISO 9772) 500 W (125mm)

4 - Thin material vertical combustion test: VTM-0, VTM-1, or VTM-2 (ASTM D 4804, ISO 9773)

5 - Foaming material horizontal combustion test: HF- 1, HF-2 or HBF (ASTM D 4986, ISO 9772)

6 - Burner: (ASTM D 5025, ASTM D 5207, ISO 10093, ISO 103351) Features:

1 - Chamber and fixture：

1.1 Chamber size：(W)1200mmX(D)600mm X(H)1300mm;

1.2 Extra large burning body at 0.55m³ to ensure adequate air supply while testing；

1.3 Chamber with paint baking treatment; inside dark painted baking (as per standards), anti-corrosion;

1.4 Integrated design composed of the test section and control unit, easy for sit installation and conditioning;

1.5 Large scale glass observation window, elegantly designed, easy to observe the burning state of materials;

1.6 Advanced industrial design conforming to ergonomic design, easy to touch the sample, set the burning rod and operate;

1.7 All clamps made of 304 stainless steel; nice and anti-corrosion; integrated design suitable for both horizontal and vertical burning; easy operation; space saving；

1.8 304 stainless steel flame height ruler

1.9 stainless steel ruler at ab accuracy of 0.5mm； 2 - Burner and gas control：

2.1 Burning angle adjustable at 0° and 45°；

2.2 USA imported Bunsen burner, length 100mm±10mm, inner diameter 9.5mm±0.3mm；totally comply with the requirements of IEC60695-11-4;

2.3 Self adjustable burner flow; self adjustable air volume in to the burner;

2.5 High precision pressure regulating valve and pressure gauge;

2.6 U-shape tube differential pressure gage;

2.7 Precise control of the flame height at 20mm±2mm 3 - Automatic control system

3.1 programmable controller with 7 "touch screen achieves control/detection/calcula tion/data display.

3.2 Pulse high voltage electronic automatic ignition;

3.3 Timing button and PLC automatic record and storage of burning time;

3.4 Timer detects the time that flame reaches 25, 100mm mark line.

Accuracy of 0.1 S, automatic timing;

3.5 No hand stopwatch or manuscript timing;The test time system records automatically and produces the test report.

3.6 Test time and flame time can be set on touch screen.

Meet a variety of test standard requirements;

3.7 Linear combustion rate (V) by PLC automatic calculation, touch screen display and storage;

3.8 test grade value (HB0 HB40 HB75/ v-0 v-1 v-2) and the national standard specified value can be vie
