Hobo Four Channel Data Node - China

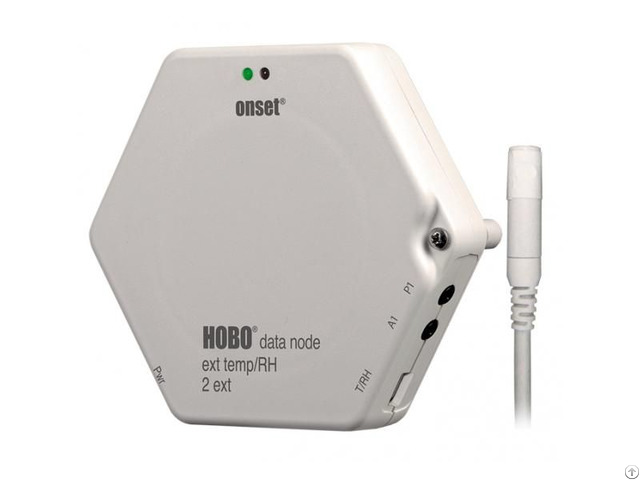

The HOBO® ZW-005 is an easy-to-deploy, 4-channel wireless temperature/relative humidity data node.

It includes an external 2m temperature/relative humidity sensor probe, and features one analog port, and one pulse input port.

It wirelessly transmits data in real time, reducing the costs and inconvenience associated with manual data offload.

Highlighted Features

Wirelessly transmits real-time data

Compact size for easy deployment wherever data is needed

Accepts a wide range of external energy and environmental sensors

Notifies you of alarm conditions via email or text messages

Onboard buffer memory helps prevent data loss

Powerful HOBOware® Pro software for organizing and viewing data (included with HOBO data receiver)

Buffer memory: 3k measurements

Sample rate: 1 min to 18 hrs

Transmission rate: 2 min and greater

Power options: AC power adapter, Battery Backup Measurement Range

Temp: -40° to 70° C (-40° to 158° F)

RH: 0 to 100% RH

Analog channels: 0 to 2.5 Vdc; 0 to 5 Vdc (w/CABLE-ADAP5); 0 to 10 Vdc (w/ CABLE-ADAP10)

Pulse channel: (w/CABLE-2.5-STEREO)0 to 65, 535 pulses per logging interval Accuracy

Temperature: ±0.21°C from 0 to 50°C (±0.38°F from 32° to 122°F); see Plot A

RH: ±2.5% from 10%RH to 90%RH typical to a maximum of ±3.5% including hysteresis at 25˚C (77˚F); below 10%RH and above 90%RH ±5% typical

Analog channel: ± 1.544 mV plus 2% of reading typical Operating Range

Temp: -20 to 50°C (-4 to 122°F) when battery powered, -20 to 70°C (-4 to 158°F) when line powered.

RH: 5%-95% non-condensing Resolution

Temp: 0.02° C @ 25° C (0.04° F @ 77° F)

RH: 0.05%Analog channel: 0.6 mV

Pulse channel: 1 pulse Response Time

Temp: 5 min.

in air moving 1m/sec (3.3 ft.

/sec)

RH: 10 min.

in air moving 1 m/sec (3.3ft/sec) Range: Approx.

100m (300ft.

) depending on obstructions or interference

Weight: 138g (4.87 oz) with batteries

Dimensions: 96.5 x 108 x 28mm (3.8 x 4.25x 1.1 in)

Radio power: 1.6 mW (2 dBm)

Wireless data standard: IEEE802.15.4 2.4 GHz band
