Hobo Bluetooth Low Energy Temperature Relative Humidity Data Logger - China

Overview

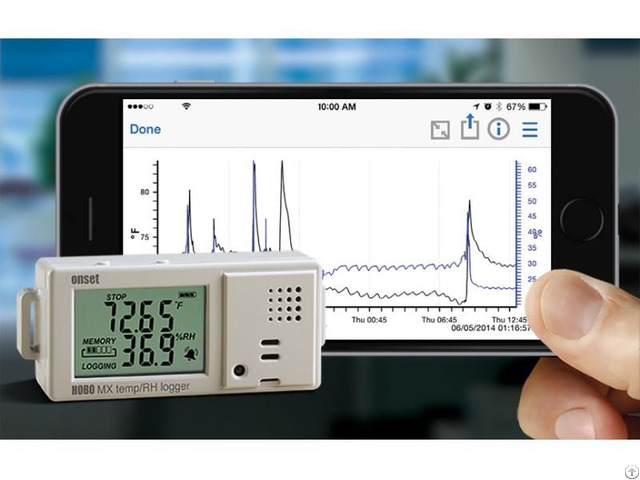

Onset’s HOBO MX1101 data logger measures and transmits temperature and relative humidity data wirelessly to mobile devices via Bluetooth Low Energy (BLE) technology.

The self-contained wireless data logger, which works with Onset’s free HOBOmobile® app for logger setup and data management, enables you to access data anytime from mobile device for iOS or Android over a 100-foot range, and it requires no dedicated equipment beyond a mobile device for configuring the logger or reading out data.

Using Onset’s free HOBOmobile® app, you can view data in graphs, check the operational status of loggers, configure alarm notifications, and share data files.

Temperature Sensor

Range -20° to 70°C (-4° to 158°F)

Accuracy ±0.21°C from 0° to 50°C (±0.38°F from 32° to 122°F)

Resolution 0.024°C at 25°C (0.04°F at 77°F)

Drift <0.1°C (0.18°F) per year

RH Sensor*

Range 1% to 90%, non-condensing

Accuracy ±2.0% from 20% RH to 80% RH typical to a maximum of ±4.5% including hysteresis at 25˚C (77˚F); below 20% RH and above 80% RH ±6% typical

Resolution 0.01%

Drift <1% per year typical

Response Time

Temperature 7: 30 minutes in air moving 1 m/s (2.2 mph)

RH 20 seconds to 90% in airflow of 1 m/s (2.2 mph)

Logger

Radio Power 1 mW (0 dBm)

Transmission Range Approximately 30.5 m (100 ft) line-of-sight

Wireless Data Standard Bluetooth Smart (Bluetooth Low Energy, Bluetooth 4.0)

Logger Operating Range -20° to 70°C (-4° to 158°F); 0 to 95% RH (non-condensing)

Logging Rate 1 second to 18 hours

Logging Modes Fixed interval (normal, statistics) or burst

Memory Modes Wrap when full or stop when full

Start Modes Immediate, push button, date & time, or next interval

Stop Modes When memory full, push button, date & time, or after a set logging period

Restart Mode Push button

Time Accuracy ±1 minute per month at 25°C (77°F)

Battery Life 1 year, typical with logging interval of 1 minute.

Faster logging and/or statistics sampling intervals, entering burst logging mode, and remaining connected with HOBOmobile will impact battery life.

Excessive readouts, checking of Full Status Details, audible alarms, and paging all impact battery life.

Visual alarms and other events can have a marginal impact on battery life.

Battery Type Two AAA 1.5 V alkaline batteries, user replaceable

Memory 128 KB (84, 650 measurements, maximum)

Full Memory Download Time Approximately 60 seconds; may take longer the further the device is from the logger

LCD LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range

Size 3.66 x 8.48 x 2.29 cm (1.44 x 3.34 x 0.9 in.

)

Weight 56 g (1.98 oz)

Environmental Rating IP50
