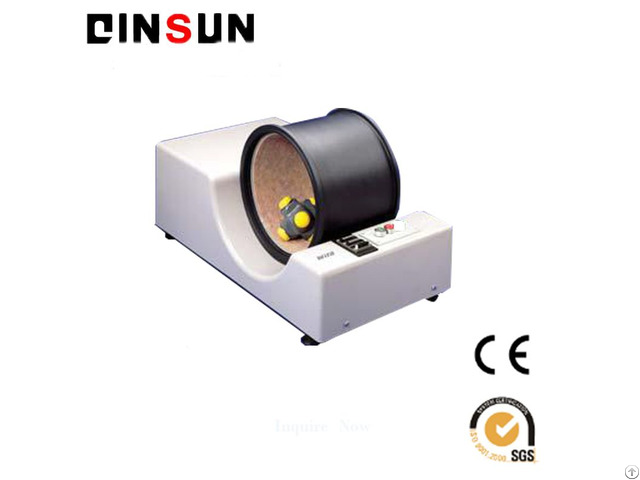

Hexapod Tumbler Carpet Tester With Iso 9405 - China

The Hexapod Tumbler Tester is a popular apparatus used in the evaluation of the appearance retention of carpets.

Hexapod Tumbler Carpet Tester, to evaluate the appearance retention of carpets.

Can test with underlay underneath the carpet.

Standards of Hexapod Tumbler Tester:

BS EN 1471: 1997, ISO 9405: 2001

IWS test methods 247 & 251, ISO 10361: 2000 (BS)

Wools of New Zealand test methods 247 & 251 Product information of Hexapod Tumbler Tester:

·Widely used in the evaluation of the appearance retention of carpets

·Can test with underlay underneath the carpet

·Provides a rapid method of test - completion within one working day Test Method of Hexapod Tumbler Tester:

Specimens of carpet are fastened to a flexible backing sheet with double-sided adhesive tape.

This assembly is fitted on the inside surface of the drum and can easily be removed at any stage for inspection of the specimens under test.

If required, an underlay may be fitted beneath the carpet for direct comparison with normal use.

The drive to the drum incorporates a reversing mechanism to give more realistic pile disturbance, and the required number of revolutions may be preset on a revolution counter.

The 3.8kg tumbler has six polyurethane stud feet.

The carpet specimens are treated for 2, 000 revolutions, which takes approximately one hour.

They are then taken out of the drum on their backing sheet and cleaned using an upright vacuum cleaner simulating practical usage.

The specimens are replaced and the treatment repeated, normally six times, giving a total of 12, 000 revolutions.

After the final vacuum cleaning, the change in appearance is assessed against an appropriate set of ISO reference scales.

Technical Parameters:

Dimensions: 430mm×780mm×400mm(W×Dà —H)

Power Consumption: 375W Hexapod Tumbler Tester Consumables:

_ Replacement polyurethane stud feet

_ Drum liner

Evaluation of appearance change：

ISO 9405: 2001 specifies the following two evaluation methods

Method A Method B

Illuminationg device with rotary inspection table Assessment fcial mask

Large grey card Illuminationg device

Digital image reference sample card Digital image reference sample card
