Gtwg4 12a Cnc 4 12mm Rebar Stirrup Bending Machine - China
price: 1000.00 Dollar US$
china coal0001

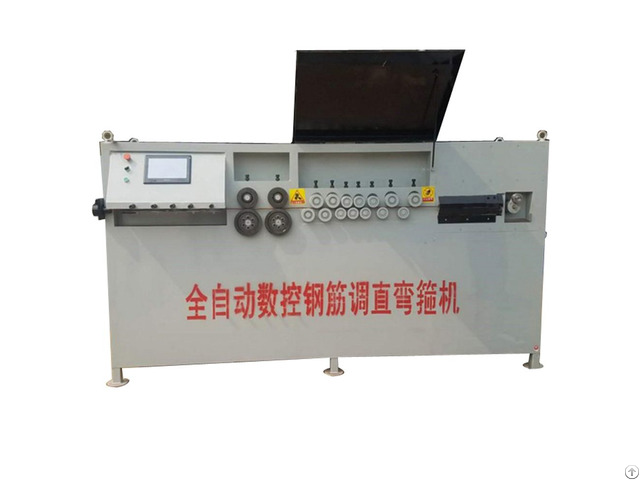

GTWG4-12A CNC 4-12mm Rebar Stirrup Bending Machine
Introduction of GTWG4-12A CNC 4-12mm Rebar Stirrup Bending Machine
GTWG4-12A CNC 4-12mm Rebar Stirrup Bending Machine belongs to a kind of improvement of the structure of reinforced bending machine.
Fully automatic CNC rebar bending hoop machine, CNC steel hoop bending machine, bar bending hoop machine, straightening system features: low by horizontal and vertical consisting of two sets of straightening roller can automatically adjust, combined with the four traction wheel, driven by imported servo motor, make sure that the steel bar straightening precision to achieve the best.
One of the steel bar processing machinery.
Parameter of GTWG4-12A CNC 4-12mm Rebar Stirrup Bending Machine Single processing capacity Φ4-Φ12mm
Dual processing capacity Φ4-Φ8 mm
Bending Angle ±180
Central axis diameter Φ18-Φ25mm
Maximum traction speed 75-90m/min
Maximum bending speed 1000/SEC
Exact length ±1mm
Angle precise ±1°
average power consumption 3-5 kw/h
number of processing ≤2
Pneumatic pressure 0.2-0.6 Mpa
Equipment power 23.5kw/380V/60Hz
size/Weight 3100*850*1580 mm/1160 kg
