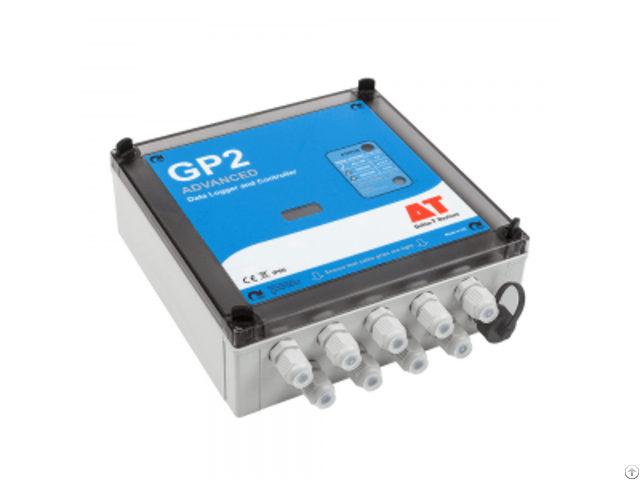

Gp2 Advanced Data Logger And Controller - China

The GP2 is a powerful 12 channel data logger that is easy to use, versatile, rugged and reliable.

It can log most sensor types and accepts voltage, resistance, current, potentiometer, bridge, counter, frequency, and digital state inputs.

DeltaLINK software helps the user set up logging sequences and provides control over reading frequency, sensor type, thresholds, units and much more.

All Delta-T sensors can be selected from a menu.

Specification

Input connections 12 differential (or 24 single-ended) analog inputs configurable as: Voltage, Resistance (12 3-wire or 24 2-wire), Bridge (12), Potentiometer (12) 4 digital inputs as: Counters, (2 fast + 2 slow), Frequency, Digital state 1 Delta-T WET sensor channel Unlimited virtual channels Serial input channel: 62 SDI-12 sensors or a single WET Sensor Control outputs 2 relay outputs expandable to 6 (1A)

Readings stored 2.5 Million

Recording rate 1 second to 24 hours

Configuration DeltaLINK

Communication options USB, RS232, ethernet or modem

Sensor excitation Calibrated 3V reference, +5 V and+12 V regulated, or 5 to 10.5 V (battery or external power), user selectable

Power 6 AA alkaline batteries or external power 10-15V DC

Battery life (dependent on usage) >310K readings, lasting 530 days

Enclosure rating IP65

Temperature range -20 to +60°C

Display –

Size 225 x 185 x 75 mm

Typical applications Demanding research projects

Environmental monitoring

Varied control applications Sensor compatibility (maximum number of sensors that could be connected [1]

ML3 ✓ (6) with temp / (12) without temp

SM150T ✓(6) with temp / (12) without temp

PR2 ✓(2 PR2/6 with expansion lid) (3 PR2/4 with expansion lid)

PR2 SDI-12 ✓ (50)

WET Sensor ✓ (1)

EQ3 ✓ 6 with temp / 12 without temp

Temperature ✓ (12)

Tensiometers ✓ (12)

Counters or Events ✓ (4) 2 fast 2 slow

Relay Output ✓(2) expandable to (6)
