Glow Wire Test Instrument - China

The glow wire tester operation instructions according to the GB5169 and GB4706 the design and manufacturing requirements with the standards so called glow wire test method, which apply to the fire danger test on electrical and electronic products, household electrical appliances and materials, simulation heat element or overload resistance of heat or ignition source caused by thermal stress in a short time.

Product Description

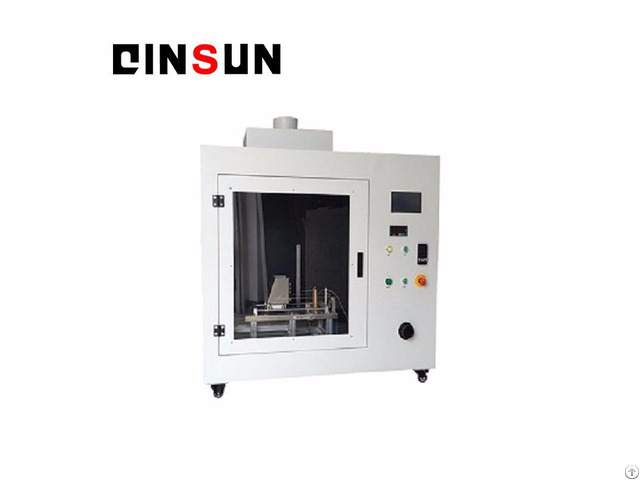

This instrument adopts steel structure of spraying, imported instrument display, easy operation, stable performance, suitable for the quality inspection departments at all levels and relevant enterprises to use fire resistant test Technical parameter 1 - Heating temperature: 500-1000 or less continuous tunable range, temperature measurement accuracy of plus or minus 10 2 - More than burning time: 0.1 999.9 s, plus or minus 0.1 s (adjustable time range) 3 - Burning time: 0.1 999.9 s, automatic recording, pause manually 4 - Residual flame time: 0.1 999.9 s, automatic recording, pause manually 5 - Hot wire for sample pressure.

Pressure limiting depth of 7 mm 6 - Glow wire: nickel chromium (80%), chromium (20%), the size is made according to the rules.

7 - Thermocouple: nickel chromium/nickel aluminum wire, k index 8 - Auto off: sample after reaching prescribed burning time, automatically be off from the hot wire 9 - Overall dimensions: width, deep, high (1120, 520, 520) mm
