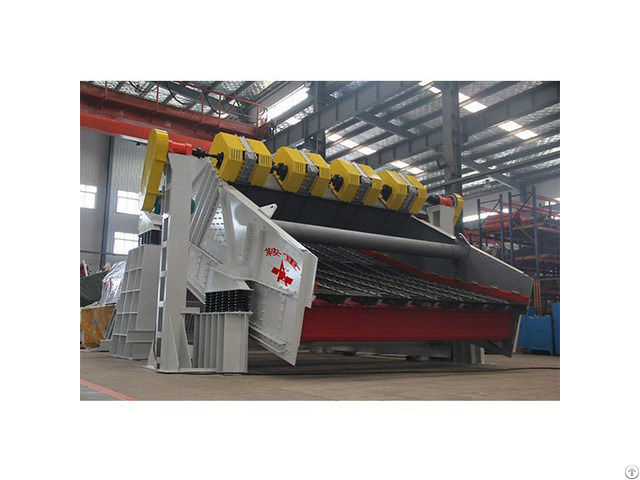

GJZX Series Banana Linear Vibrating Screen

GJZX Series Banana Linear Vibrating Screen is mainly used in classification of medium and fine size of material with high content of undersize material.

Industry solutions:

Vibrating Screen machine is mainly used in classification of medium and fine size of material with high content of undersize material.

It can replace sieve bend-horizontal vibrating screen to dewatering, demediuming, desliming and so on.

Vibrating Screen series Main Character:

● Multi-slope, 50% higher than conventional screen in capacity

● Huck bolted on assembly

● Free welding stress, rectangular cross Beam lined with rubber

● Modular decks

● Anzhong Brand case type vibrator

Oil lubricated with spherical roller bearing

● Long life bearing, adjustable amplitude

● 1.8m-4.9m deck wide, 6.1-9.11m deck long

● Single deck and double deck

● Vibrating frequency 750-970r/min

● Stroke: 9mm-14mm

Motion on a Vibratory Screen is produced with a combination of amplitude (stroke) and frequency (speed).

The goal is to allow the particle to see as many openings as possible as it travels down the screen, but never see the same opening twice.

Large screen openings for large cuts can be achieved with high amplitude and low speed.

For small screen openings for finer cuts, the opposite is true: low amplitude and high speed.

With many years’ export experiences, our Fine Vibrating Screen, China Vibrating Screen For Sale, Medium Size Material Vibrating Screen has been welcomed in international markets.

Welcome contact us!

Company Contact:

• Posted By: Anshan Heavy Duty Mining Machinery Co., Ltd.

• Phone: 15242102697

• Address: No.294 Anqian Road,High-tech Zone, anshan , LIAONING , China

• Email:

• Website: https://www.screensaz.com

• Business Description: Founded in 1994, Anshan Heavy Duty Mining Machinery Co., Ltd. is the vibrating screen base in China and leading company in vibrating screen industry.

  Its registered fund is 232 million RMB and has 600 staffs.

  It was listed on A share market in China in 2012 - It is the only listed company in vibrating screen industry in China.

  Having a large product range including vibrating screen, crusher, feeder, ball mill, asphalt mixing plant, PC production line, trash separation complete plant, etc.

  Up to now, 30 series and over 900 specifications of vibrating screens have been developed widely used in all domestic and international industries such as coal ore, iron ore&steel plants, metallurgy&mine, power station, building material, road construction and so on across the country of thirty-two provinces, cities and autonomous region and exported to the overseas such as Australia, Russia, Chile, Peru, Japan, Saudi Arabia, India, Algeria, Turkey, Kazakhstan, Zambia, Tajikistan, Indonesa, Iran, Singapore, Malaysia, Philippines, Mongolia, Vietnam, Papua New Guinea, Congo, Kyrgyzstan,Burma,etc.

  We have CE Certification, ISO9001 Certification,, ISO14001 Certification, OHSAS 18001 Certification.

  The China Professional Standards of vibrating screen, 53% of the whole 23 professional standards are presided and drafted by our company.

  Furthermore, we possess 32 patents.

  The ZKK series wide deck linear vibrating screens possess high production capacity which can achieve the sum total of many common types screens working jointly.

  In 2008, the 5.05m×11.32m Amplitude Descending Elliptical Vibrating Screen was evaluated the biggest vibrating screen in the world among the same type.
