Gas Switching Systems - China

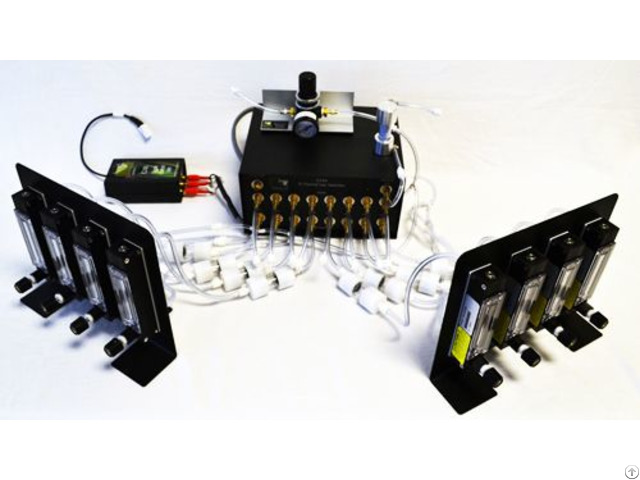

Qubit Gas Switching Systems have been designed to work with Q-Box Packages to allow measurements of gas exchange from multiple samples.

Our Gas Switching Systems allow monitoring of up to 8 different channels with a single Q-Box system such as Q-Box RP1LP Low Range Respiration Package, Q-Box RP2LP High Range Respiration Package, and up to 4 different samples with Q-Box NF1LP Nitrogen Fixation Package and Q-Box CO650 Plant CO2 Analysis Package.

Qubit Gas Switching Systems allow multichannel measurements of respiration (VO2 and VCO2), nitrogen fixation, photosynthesis and transpiration.

When Gas Switching System is used with a Q-Box Package the larger flow gas pump (Q-P651) has to be used (3LPM no load).

It carries the reference gas via the G261 low pressure regulator to the flow meters.

Each flow meter supplies and manually controls the flow of gas to each sample chamber.

Output gas from all sample chambers is carried to the gas inputs on the gas switcher (G244 or G243).

The specific chamber is selected by the software and its gas is carried to the analyzers and the flow monitor of the Q-Box via a solenoid valve associated with that channel inside the gas switcher.

The switching between chambers is controlled via the digital control unit (C200) and the software.

The output from the remaining chambers vents via the gas switcher vent ports to the atmosphere.

As a result all chambers have gas flowing past the sample at all times.

Channel 1 is always used as a reference channel.

Three modes of operation are available for the gas switching system.

Mode 0 allows sequential measurements of all channels from 1 to 8 (in eight channel system) with reference channel being measured every 8 channels.

Mode 1 allows sequential measurements of all channels with the reference channel being measured after each sample channel.

In this mode the reference signal is measured more frequently.

User can select the No of Channels, Mode, Dwell Time (on each channel)l and EventTime (time period for calculating of average data at the end of each DwellTime) in the software.

Manual mode can also be selected in user parameter ManualCh to allow monitoring of a single channel during the setup of an experiment.
