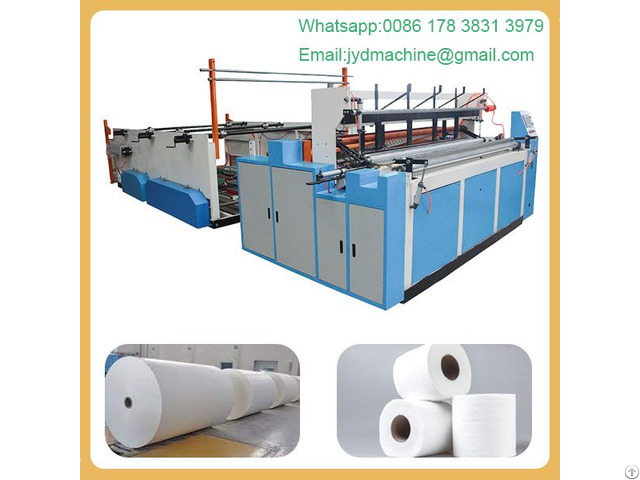

Fully Automatic Toilet Tissue Paper Rewinding Machine - China

The automatic toilet paper rewinding machine adopts computer programming technology to realize automatic paper tube change (or coreless automatic roll paper), automatic glue spraying, edge sealing, and trimming and is used for fast and efficient rewinding of toilet paper.

The toilet paper rewinding machine is the fastest running machine in the paper-making machinery.

Its speed is 1500~1800m/min, and the maximum speed is more than 3000m/min.

The emergence of fully automatic toilet paper rewinding machines has greatly improved the efficiency and quality of toilet paper production, reduced the labor intensity of workers, and improved product quality.

Toilet Paper Rewinding Machine Working Principle

Put the raw paper on the paper feeding frame (three-axis paper).

The paper feeding frame has an automatic paper loading device and a paper feeding device, and then the paper is passed into the paper feeding roller.

There is a tension bar device in front of the paper feeding roller to flatten the paper surface., enter the punching device and finally enter the guide roll device; There are hollow paper shaft devices on both sides of the guide roller to make centerless roll paper; The roll paper is guided repeatedly by the roll guide roller and the pressure roller (the tightness of the roll paper is adjusted according to the customer’s requirements, and it is convenient to adjust at will by the air pressure control).

When the roll paper reaches a certain specification, the machine will automatically stop and push the roll paper out; Automatic Toilet Paper Rewinding Machine Parameter

Model： 2800

Base paper width： ≤2800mm

equipment speed： 280m/min

Main power： 7.5KW

paper holder： 2 layers paper holder

Embossing Roller： Steel to wool roll (full embossed effect)

Dimensions： 6500mm*4200mm*1750mm
