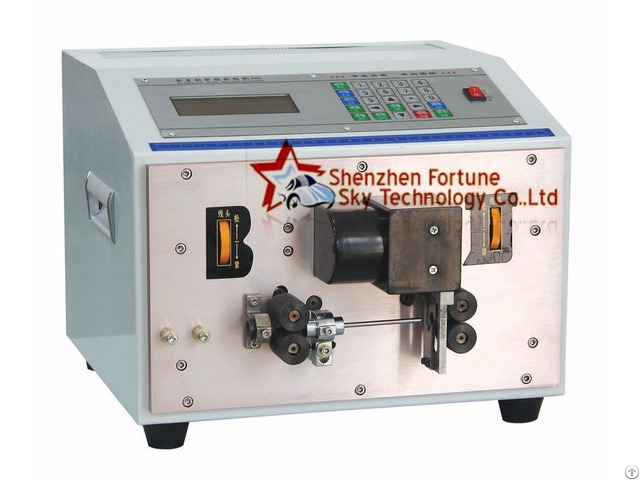

Fully Automatic Pvc Wire Cutting And Stripping Machine - China

This pvc wire cutting and stripping machine uses a hybrid drive microcomputer full LCD operating system, cutting, stripping, one time completion, but also the front half stripping with twisted wire, protect the integrity of the wire, special wire can instantly change the size of wire specifications.

Model No.

BJ-600 BJ-650 BJ-800 BJ-880

Main Function Cut wire, both-ends stripping Cut wire, both-ends stripping, intermediate strip, (wire twisting for BJ-880)

Cutting wire core 0.1-4.0mm2 (30AWG-14AWG) 0.1-4.0mm2 (30AWG-14AWG)x2 0.1-2.0mm2 (32AWG-14AWG)x2 0.1-2.5mm2 (30AWG-14AWG)x2 Processing Speed(decided by wire material) 2000-8000 pcs/hour 4000-16000 pcs/hour 2000-8000 pcs/hour Cutting Length 0.1-9999.9mm No.

Of Intermediate Stripping 0 13 Stripping Length Strip head: 1-30mm Strip tail: 0.1-15mm Strip head: 1-30mm Strip tail: 0.1-30mm Strip head: 1-50mm Strip tail: 0.1-30mm Strip head: 1-30mm Strip tail: 0.1-20mm Accuracy of outlet inlet motor Mute hybrid stepping motor 0.1mm per stepping Other functions Automatic wire inlet & outlet, timing Driving Mode 4 wheels Dimension(mm) 380x250x320 420x297x345 420x297x345 420x297x345

Net Weight 25 28 32 35

Blade Material Import Tungsten Steel/High speed steel

Company Contact:

• Posted By: Shenzhen Fortune Sky Technology Co.,Ltd

• Phone: 19970532453

• Address: No.502,77th,Blog,Kong Fa New Village,CaoPu, Shenzhen , Guangdong , China

• Email:

• Website: https://www.fortunesky-tech.com

• Business Description: Shenzhen Fortune Sky Technology Co., Ltd mainly supplies variety of fully automatic wire stripping machines, pneumatic cable stripping machines, fully automatic tube cutting machines, scrap cable stripping machine for cooper recycling, fully automatic terminal crimping machines, plastic injection moulding machines.

  Established in 2008 Fortune Sky has steadily grown into a major specialist for wire harness processing and automatic tube & tape high-speedy cutting.

  Through strong concentration, strict supervision, sense of responsibility, Fortune Sky has been able to provide good performance top quality exceptional price products to meet clients demanded.

  We are a short-history company while won a glorious reputation backed by our customers, some having enjoyed our services since we started.

  Our intentions from day one has been to offer high quality products and a specialist professional service.

  We will continue to provide this with our experienced staff and team.

  “The same equipment we compare quality, the same quality we compare price, the same price we compare service”! We are guided by the principle of “honesty, pursuit of excellence, dedication to service excellence, ” innovation and development, and continue to train a large number of outstanding professionals, more quickly, more professional, more sincerely at your service!Established in 2008 Fortune Sky has steadily grown into a major specialist for wire harness processing and automatic tube & tape high-speedy cutting.

  Through strong concentration, strict supervision, sense of responsibility, Fortune Sky has been able to provide good performance top quality exceptional price products to meet clients demanded.

  We are a short-history company while won a glorious reputation backed by our customers, some having enjoyed our services since we started.

  Our intentions from day one has been to offer high quality products and a specialist professional service.

  We will continue to provide this with our experienced staff and team.
