Full Automatic Domestic Ro Membrane Spiral Wounding Machine For 1810 3313 Series - China

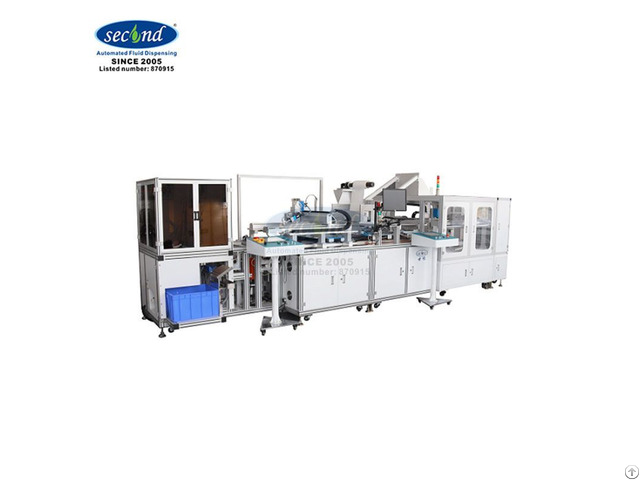

SEC-4880GL Hot selling full automatic Domestic RO membrane spiral wounding machine for 1810-3313 series

This is probably the ultimate model for the domestic RO element production.

The RO membrane spiral winding machine is fully automated, and ready to work 24/7 - Operators load carrier, membrane, spacer, wrapping tape, pipes, and glue, than set the production parameters accordingly, machine finish all by itself.

The machine can slice, insert, ultrasonic, dispensing, rolling to complete.

This is probably the ultimate model for the domestic RO element production.

The machine is fully automated, and ready to work 24/7 - Operators load carrier, membrane, spacer, wrapping tape, pipes, and glue, than set the production parameters accordingly, machine finish all by itself.

The glue dispensing system can slice, insert, ultrasonic, dispensing, rolling to complete.

After completion, machines trigger alarm automatically to call operator to come collect, and or refill the material ran out.

Absolutely no labor requires in between the production.

full automatic RO membrane spiral wounding machine Main features:

1 - With this system, the machine can automatic loads up the permeate tube into its correct welding position.

And the system will automatically check if the core pipe is placed in the right side or not? If not, it is able to recognize, and remove the wrong piece into a collection bin for next reuse.

2 - The glue dispenser uses air expanding shaft to control and fit the permeate collection membrane into the right tension, so to avoid skidding.

3 - To keep up with element rolling quality, this automated spray assembly line also equips with magnetic brake control system, so to avoid wrinkling and keep folding process steady.

4 - The ultrasonic system is also able to recognize the core pipe's collection holes in the permeate tube and avoid direct welding on the holes.

This ultrasonic can weld in high speed, seal edges evenly, and cause no pollute.

5 - fluid dispensing machine is the most important part of any RO element rolling machine, achieve zero wasting while increase overall company image.

The adhesive potting machine equips with high precision robotic dispensing valve.

Operator can set ratio, speed, volume, and command the robot to dispense any patterns, anywhere within the working range.

6 - RO element spiral wounding machine achieved automatic material feeding, welding, wounding, and cutting.

7 - The system includes the outer wrap plastic automatic cutting machine, it can automatically feed, tape, rolling, and cutting.

8 - The produced parts will be automatically unloaded to its collection tray.

Collection tray also equips with sensor to signal if tray is in the right position or not.

9 - Permeate collection tube automatic loaded to its place, system can check its position, and if place opposite, the tube will be removed to its collecting bin and waiting for reload; System automatic adjust membrane cutting width, feed spacer, fold membrane, lay on permeate collection, dispensing glue, weld permeate tube, wounding, and unload, fully automatic integrated.
