Free Falling Dart Impact Resistance Tester Testing Machine - China

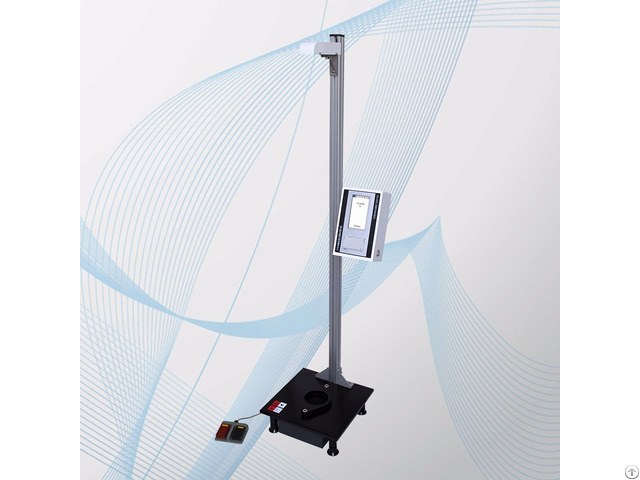

FDI-8001 Free-falling Dart Impact Tester applies to measure impact resistance properties of plastic films, paper, sheets and other relevant packaging materials using falling dart or ball method.

Standard:

ASTM D1709 --- standard test methods for Impact Resistance of Plastic Film by the Free-falling Dart Method.

JIS K 7124-1: 1999 Plastics Film And Sheeting - Determination Of Impact Resistance By The Free-falling Dart Method - Part 1: Staircase Methods

Main Features about FDI-8001:

1 - Method A, method B, falling ball test available

2 - Pneumatic clamp, foot pedal operation can be protected people from damage

3 - Electromagnetic suspension and auto release of the falling ball/dart reduce results errors

4 - Touch screen operation and TFT screen display curves are easy for the user to operate, as well as micro-printer built-in.

5 - Historical data statistic and query function.

6 - This instruments conforms to multiple standard of ASTM, JIS and GB and operator shall select testing methods as required

Falling dart impact tester Technical indexes:

Test method Method A, method B, others

Result accuracy 0.1g(J)

Sample clamp Pneumatic

Dart mass Method A: 50~ 2000g

Method B: 300~2000g

Contour dimension Method A: 450mm(L)*450mm(B)*1365mm( H)

Method B: 450mm(L)*450mm(B)*2160mm( H)

Gas source less than 1.1MPa(provided for yourself)

Sample size not less 150mm*150mm

Power supply AC 220V 50Hz

Net weight 55kg

Other product :

Universal tensile tester, Water vapor permeability tester, Gas transmission rate tester, Oxygen permeability tester, Coefficient of friction tester, thickness tester, Hest seal tester, Leakage tester
