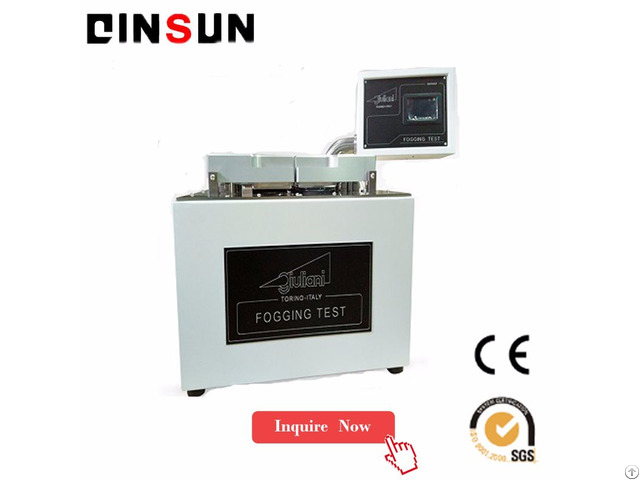

Fogging Index Test Instrument - China

Standards

DIN 75201 Determination of the fogging characteristics of trim materials in the interior of automobiles

ISO 6452 Rubber or plastics coated fabrics-determination of fogging characteristics of trim materials

in the interior of automobiles

SAE J1756 Test procedure to determine the fogging characteristics of interior automotive materials

QB/T 2728 Leather-physical and mechanical test-determination of fogging characteristics.

BS EN 14288 Leather - Physical and mechanical tests - Determination of fogging characteristics

PV 3920 Determination of fog value (F) of non-metallic interior materials

PV 3015 Non-metallic materials for interior trim-determination of condensable constituents.

ES-X83231 Standard test method-For fogging of interior materials

NES M0161 Interior materials fog test method

D45 1727 TRIM MATERIALS AND PARTS FOR INTERIOR AND PASSENGER COMPARTMENT PARTS - FOGGING - CONDENSATION

GM 9305P Determination of fogging characteristics of automotive interior trim materials

TSM 0503G Fogging test method for non-metallic materials Features:

CONSTRUCTIVE CHARACTERISTICS:

· Internal carrying plane, in structural treated steel, anti-acid painted.

· External protection in sheet steel of proper thickness, anti-acid treated and painted with epoxy resin.

· six work places 18/8 Inox steel test room.

· 18/8 Inox steel lift able cooling system.

· Rapid clutch Agitation System.

· Armored resistances.

· Security thermostat.

· Cooling liquid and relief entry etching with rubber-carrier.

SECURITY NORMS: · Safety Magnetic Switch.

· Digital thermos regulator and microprocessor.

· Electronic auto programmable timer · START-STOP switches, · Warning Lamps.

· End test buzzer hint signal Technical Parameter：

Hot bath temperature range: room temperature ~ 150 ℃ (room temperature ~ 280 ℃ optional)

High-temperature tank temperature control accuracy: ± 0.1 ℃ (150 ℃)

Low bath temperature range: 0 ~ 100 ℃

Cold tank temperature control accuracy: ± 0.1 ℃

High temperature trough Dimensions: 670 mm (L) × 490 mm (B) × 540 mm (H)

Cryogenic tank Dimensions: 400 mm (L) × 220 mm (B) × 520 mm (H)

Temperature tank Weight: 32kg (not including the thermally conductive medium)

Cryogenic tank Weight: 15kg (not including the thermally conductive medium)

Power: AC 220V 50Hz

Weight: 50kg

Size: 500 * 650 * 600mm

Temperature stability: ± 0.1 ° C (200 ° C)

Heating power: 3KW

Cooling capacity: 500W

Data communication: multi-function remote sensor and USB port

Safety magnetic switch

Warning Light

Test completion tips
