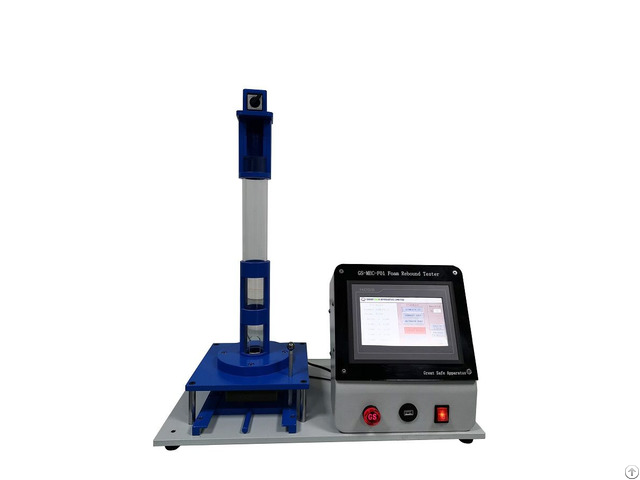

Foam Rebound Testing Machine - China

1> Applied to Standard: ASTM D 3574-17; ISO 8307-2007; GB/T6670-2008; JIS 6400 2> Specification: Drop height: 460mm / 500mm ±0.5%mm (adjustable) Drop ball: Diameter: ¢16±0.05 mm, mass 16.8g ± 1.5 g Accuracy: <1.5% Display: LCD Touch Screen interface Sensor: Optical fiber sensor Test result: Rebound height, rebound rate and average rebound rate after 5 test times Sample size (L×W×H): 100 mm×100 mm× 50mm Machine dimension(L*W*H): 570mm×3 00mm×640mm USB interface: Output test results by USB Accessories: One drop ball, one sample tray and one pick rod Power supply: Single-phase, AC110V / AC220V±10%, 50/60Hz (can be appointed) Packaging Dimensions (LxWxH)

680*470*860mm Gross Weight: 40Kg 3> Test Procedure: 1 - Turn on the power and choose the language(English/Chinese) .

2 - Apply for the test standard.

3 - Place the specimen in the machine.

4 - Stick the steel ball under the magnetic base and turn the switch to ON.

5 - Press "Waiting" and wait until the change to "Ready" 6 - Turn the magnetic switch to OFF and the steel will drop down.

7 - After test result showed, then save it or adandon it.

8 - Repeat step 4 and 5 to collect adequate data.

9 - Select the average data of 5 test result.

10 - Choose save the data in the USB or print it out.
