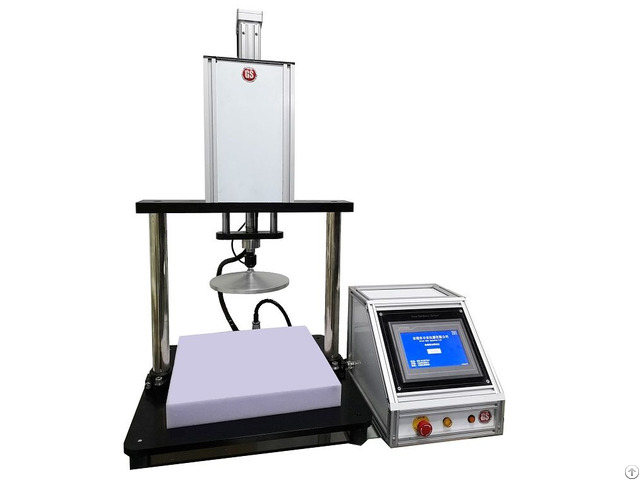

Foam Hardness And Fatugue Testing Equipment - China

1> Applied to Standard: Compression test: ASTM 3574/ ASTM 3574 IRGL/ ISO 2439/ GBT 10807 Fatigue test: ASTM 3574/ ISO 3385/ GBT 18941 2> Specification: Max capacity: 200kg Plane plate: Holes diameter 6mm, space 20mm Indentor: Having an overall diameter of 250 mm± 1 mm with a 25 mm± 1 mm radius at its lower edge Test force: 750 N ± 20 N during one loading cycle Speed: (70 ± 5) times per minute Sample size: Test pieces shall be right parallelepipeds having sides of length 380 mm± 20 mm and a thickness of 50 mm± 2 mm.

Counter: 6 digits cycle counter for test cycle setting Display: LCD touch screen Additional function: Adjust the test position during testing to compensate the force automatically Dimension: 760×780×1350mm Power supply: Single-phase, AC110V / AC220V±10%, 50/60Hz (can be appointed) 3> Test Procedure: 1 - Turn on the power, then choose the language.

( English or Chinese) 2 - Choose either compression or fatigue test by clicking "More".

3 - Place the specimen in the machine.

4 - Choose the standard which you want to test.

5 - All the procedure is programmed, check your specimen size is correct or not, then press "Next".

6 - Click "Start" and the test will begin automatically.

7 - After the test, you can check the report by clicking "Report" then click "Print" to pront out through the printer.
