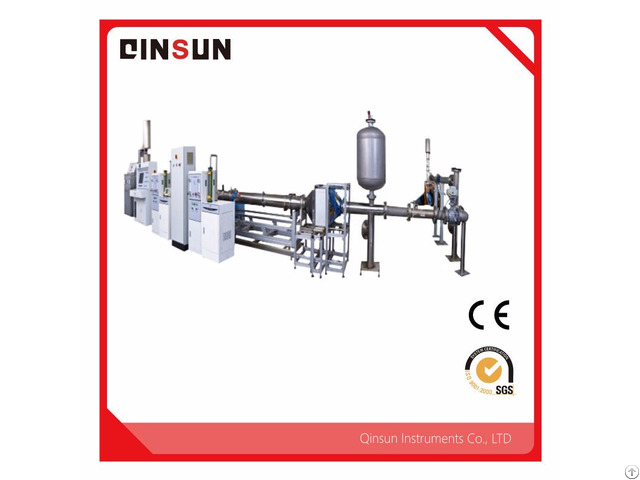

Filter Particle Counting Method Test Stand - China

Introduction The test stand is designed according to ISO/DIS19713 Road vehicles - Inlet air cleaning equipment for internal combustion engines and compressors - Part 1: Fractional efficiency test.

This filter particle counting method test stand is able to test the fractional efficiency of fine particles sized from 0.3μm-5μm and extended to 10μm.

The particle size is subdivided into 0.3μm-0.5μm, 0.5μm-1μm, 1μm-3μm, 3μm-5μm, 5μm-10μm, ≥10μm.

The design of the this test stand also takes relevant reference from American national ventilation filters standard ASHRAE52.2-1999, EN779-2002, and ISO19713 Structure · Inlet air processing chamber

· KCL aerosol feeding section

· Up and down stream particle counting section

· Specimen clamping section

· Test flow section

· Electrical control section Technical Parameters

Item Parameters

Test flow range 60-2300m3/h

Test flow error ≤±5%

Test flow repeatability deviation ≤±10%

KCL aerosol concentration stability ≤±12%(0.3-0.5μm), ≤±20%(0.5-10μm)

Stability of dust concentration used for dust holding capacity test ≤±5%

Fractional efficiency and pressure drop test repeatability ≤±5%

Power consumption 5kw (excluding water ring pump)

Covering area 15000mm*4500*3000mm(L*W*H )(excluding ventilator room)
