Fabric Textile Random Tumble Pilling Tester - China

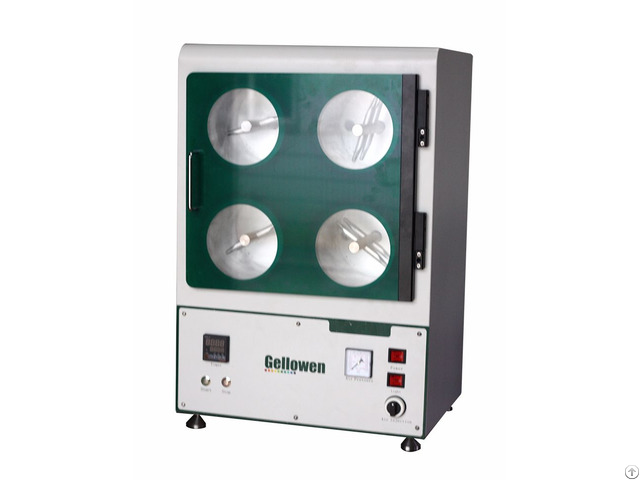

Random Tumble Pilling Tester, to determine the pilling and fuzzing characteristics of textile fabrics.

Random Tumble Pilling Tester uses stainless steel impellers that rotate within individually lit aluminum chambers constantly tumbling test fabrics against cork liners for a pre-determined time controlled by a timer and audible alarm.

Compressed air is also injected into the chamber to assist in the tumbling action.

With 2 or 4 pilling test chambers.

Laboratory standard compressed air supply is required.

Standards:

ASTM D3512, GB/T 4802.4, ISO 12945.3, JIS L1076-D Applications:

Random Tumble Pilling Tester is used to determine the pilling and fuzzing characteristics of textile fabrics.

The test specimens with dimensions of 105×105mm are put in the chambers.

The stainless steel impellers rotate within individually lit aluminium chambers constantly tumbling test fabrics against cork liners for a predetermined time controlled by a timer and audible alarm.

Compressed air is also injected into the chamber to assist in the tumbling action.

Adjustable of the pressure.

Technical Parameters:

1 - 4 test chambers;

2 - Equipped with a rotating stainless impellers in each test chamber;

3 - Reliably Sealing of the testing chambers;

4 - A digital electronic counter;

5 - A buzzer to remind the end of test;

6 - Equipped with pressure gauge and the timer;

7 - Dimension of Drum: 146×152mm;

8 - Dimension of Cork liner: 452×146×1.5mm;

9 - Rods: L=121mm;

10 - Rotating speed: 1200r/min;

11 - Compressed air: 0.014-0.021MPa.

Instrument Configurations:

1 - Pilling Photographic Standards;

2 - Cork Liner (Pack of 50);

3 - Cotton Sliver (9m);

4 - Mute air compressor (optional);

5 - Other necessary accessories recommended by manufacturer.
