Fabric Tensile Testing Machines - China

Application

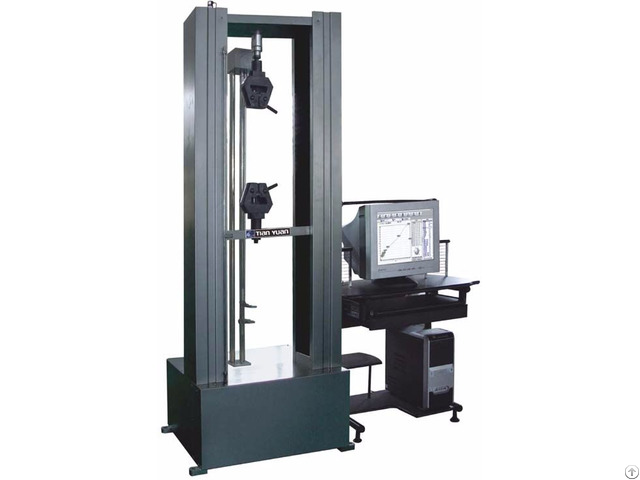

Fabric strength machine, universal strength machine and Material strength machine mainly used in a variety of materials with its constant speed stretching; tearing, stripping, fixed load, fixed elongation, elastic recovery rate, the top break and other test experiments.

Product Description:

Mainly used for a variety of materials, fabrics, non-woven materials, also with the fixed speed stretching; tearing, peeling, fixed load, set elongation, elastic recovery rate, bursting, which can also provide with functional instrument friction test according to user requirements.

Standards:

ASTM D5034, ASTMD 2261, ASTM D434, GB/T3923, GB/T3917, GB/T13772, FZ/T80007.1, ISO5081, DIN53859, DIN53858, BS3320, 4303, 2576, 2543 Parameter description:

1, the test mechanism: CRE testing mechanism, high-speed sampling

2, controlling method: computer control, liquid crystal display; print output

3, PC-line: record the whole process of testing, access to a powerful analysis, real-time display the data on curve, breaking strength, elongation, yield stress, yield elongation, elongation off, the initial modulus, the CV value and a number of statistical indicators

4, measuring range: 100.0N, 2500N, 5000N, optional

5, the tensile speed: 2mm / min ~ 1200mm / min arbitrary

6, the return speed: 2mm / min ~ 1000mm / min

7, time stretching: 20s ± 3s, 30s ± 5s optional

8, the maximum number of stretch: 99 times

9, the average number of groups: 2 to 30 times (can be the average of meridians, zonal average)

10, elongation range: 200mm gauge elongation of up to 350%

11 gauge: 25 ~ 500mm between the arbitrary regulation

12, Dimensions: 690mm × 480mm × 1270mm.

13, power supply: AC220V, 50HZ

14, Weight: about 130 kg Standard configuration:

1, a host

2, three sets of fixtures: breaking the top, torn, strength

Optional configuration:

1, a computer

2, a printer
