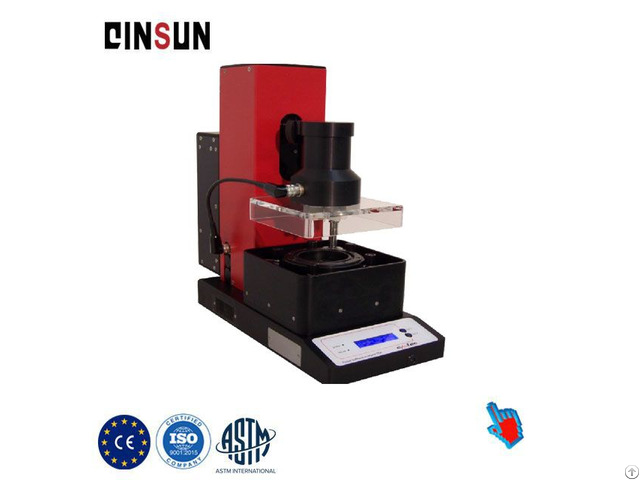

Fabric Hand Touch Feel Tester To Test Softness Value - China

Objective evaluation of its feeling (touch) performance for softness test fabrics, textiles, non-woven, sanitary paper, leather and other sheet-like soft material.

At the same time, the use of different accessories, you can also test a sample of the elastic / viscoelastic / plasticity, bursting, compressibility, thickness and basis weight and other performance indicators Product Description：

The new type of concrete works softness measuring method is as follows: The main components of the instruments are a rotor, a vibration sensor and other sensors used to collect additional data and control instrument functions.

For the measurement, the sample rests on the rotor, when the rotor starts to rotate to reach the final position.

Mutual contact between the rotor and the sample so that the sample vibrate.

After the vibration sensor receives the vibration signal, which is transmitted to the analysis component.

Analysis component prepared good data transfer to the computer.

Then, through a complex computer calculations of these data are processed.

Use a complex formula, the parameters measured by synchronizing further parameters and customer pre-entered (the maximum you can use 68 different parameters) to calculate the value of soft.

Technical Data：

Software: friendly interface, simple operation.

Test data can be stored for a long, always call data storage software, data were compared with the current test.

Sample size: φ112.8 mm

Measurement: smoothness / roughness, softness, stiffness, feel value (HF)

Measuring pressure: 100mN, 600mN

Instrument size: 440x190x470 mm (H x W x D)

Weight: 19 kg

Power supply: 115-230 VAC, 50/60 Hz
